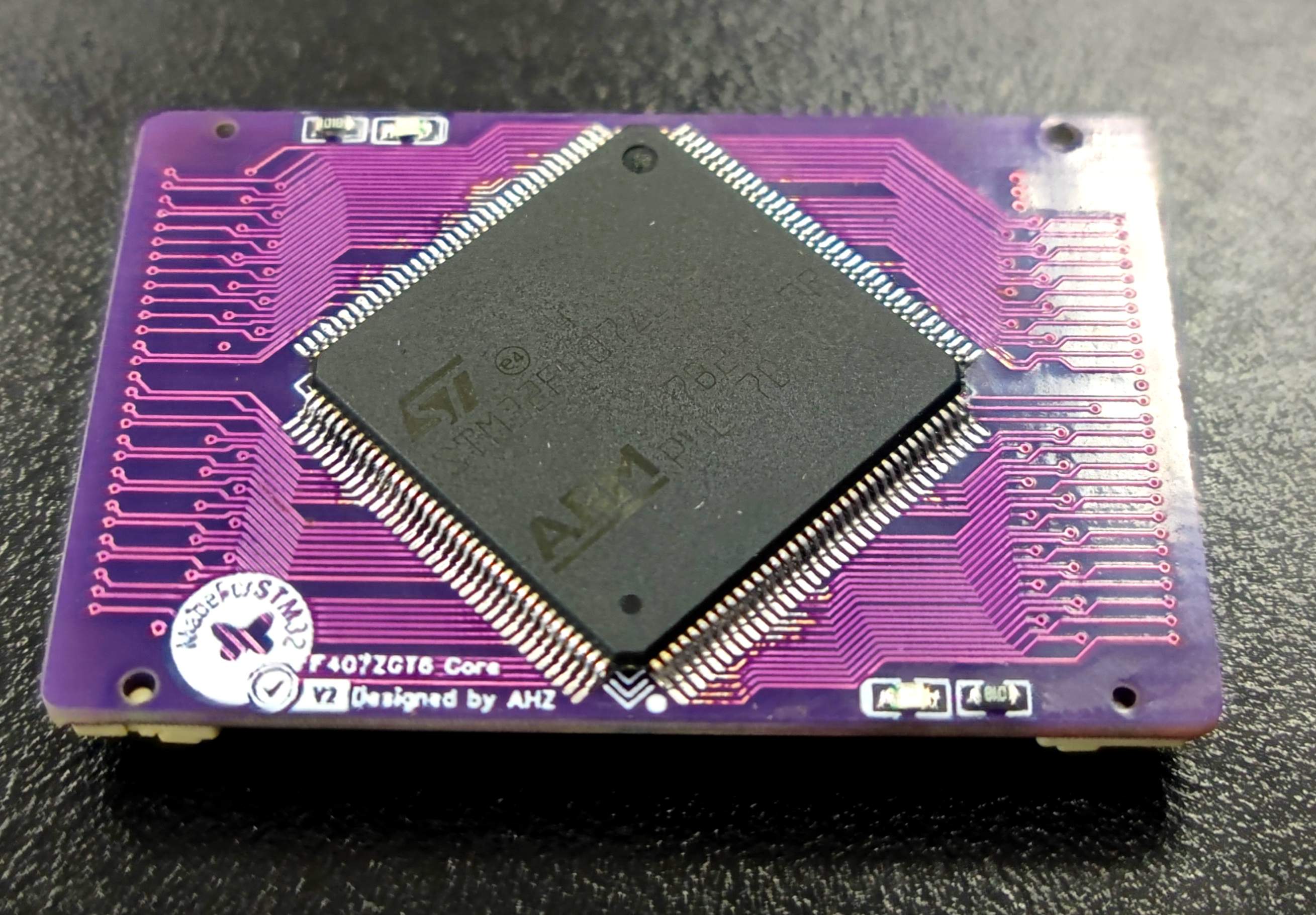

STM32F407ZGT6 core board

Overview

The STM32F407ZGT6 core is transferred using a 0.8mm BTB connector. The core board has a built-in crystal capacitor, and the BOOT0 and BOOT1 pins are grounded by default.
This makes it easy for developers to directly insert the core board into the baseboard after designing the circuit board, which is conducive to the recycling and modular integration of the core board.

The BTB connector uses a 0.8mm pitch double-row patch 60Pin:
