Overview

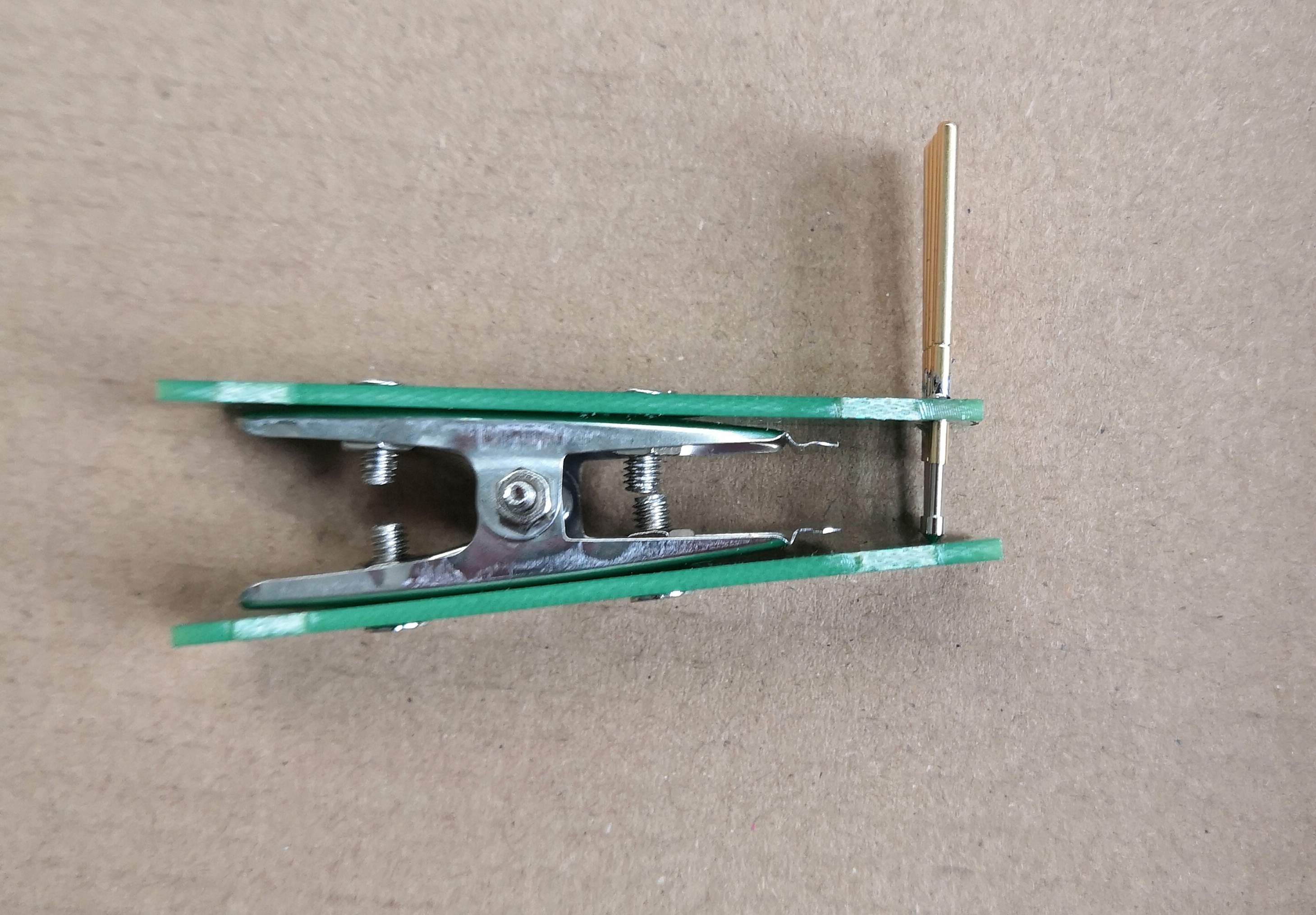

Stainless steel clip bought on Taobao + 3*8 screws and nuts*4+ white ticket PCB+p100 probe*5

A 6mm screw should be enough. There is no pin header in the photo, it is added on the PCB.
