Multi-chip universal NFC card

Overview

Standard business card size, standard coil drawing method. The chip is universal, with LEDs on the front and back. The board has been verified. Chips have been tested: S50, C50, UID, CUID, FUID, 1208-9, 1208-10, etc. I personally recommend the 1208-9 (pure CPU) solution.

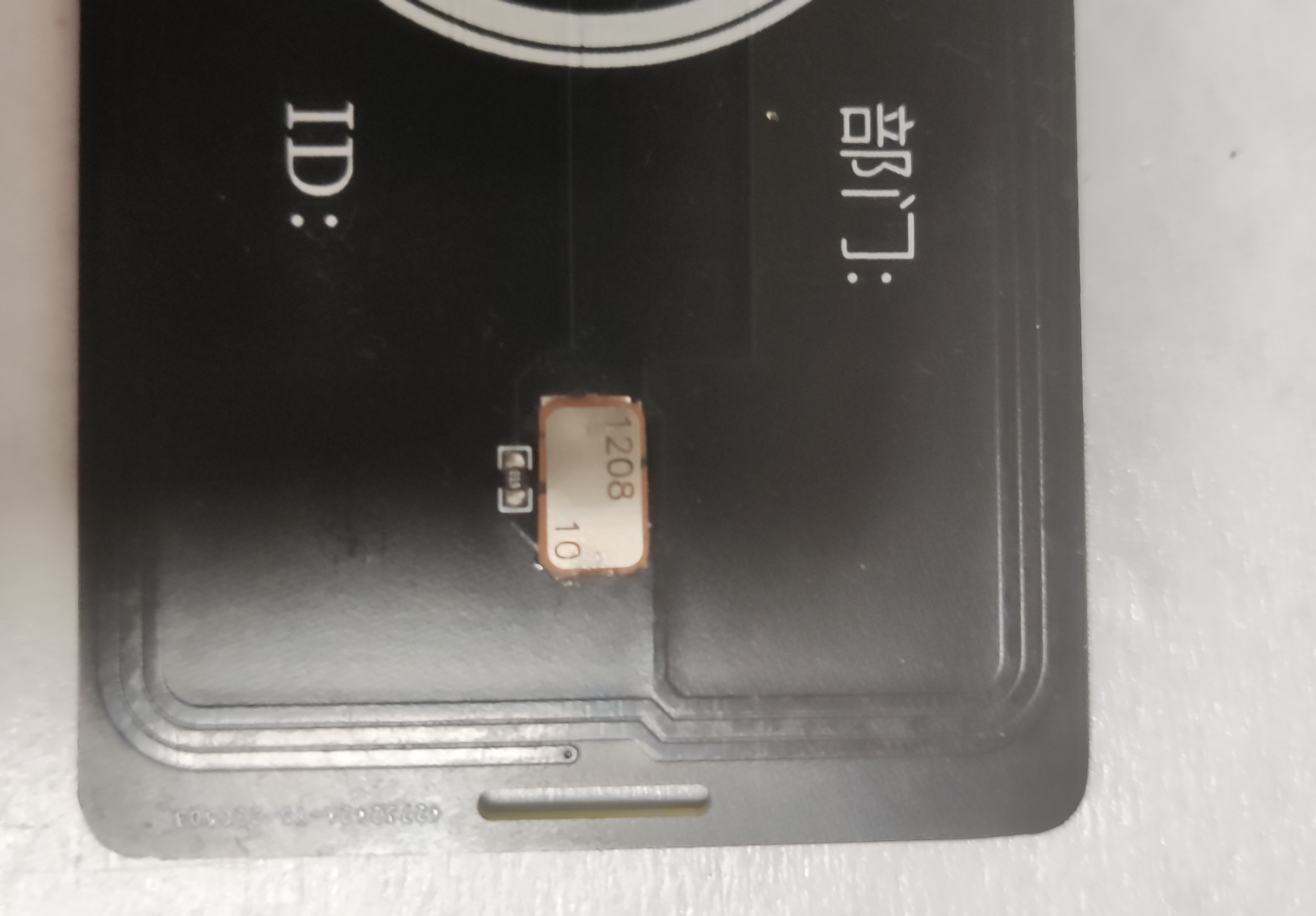

The welding effect of using 3*5 package is as follows:

the welding effect of using 5*8 package is as follows.

It is recommended to use a soldering station and add a large amount of flux.
When soldering the 5*8 chip connector with a soldering iron, be sure to clean the soldering iron tip.
