TDA2616/TDA1521_Two-channel HiFi power amplifier

Overview

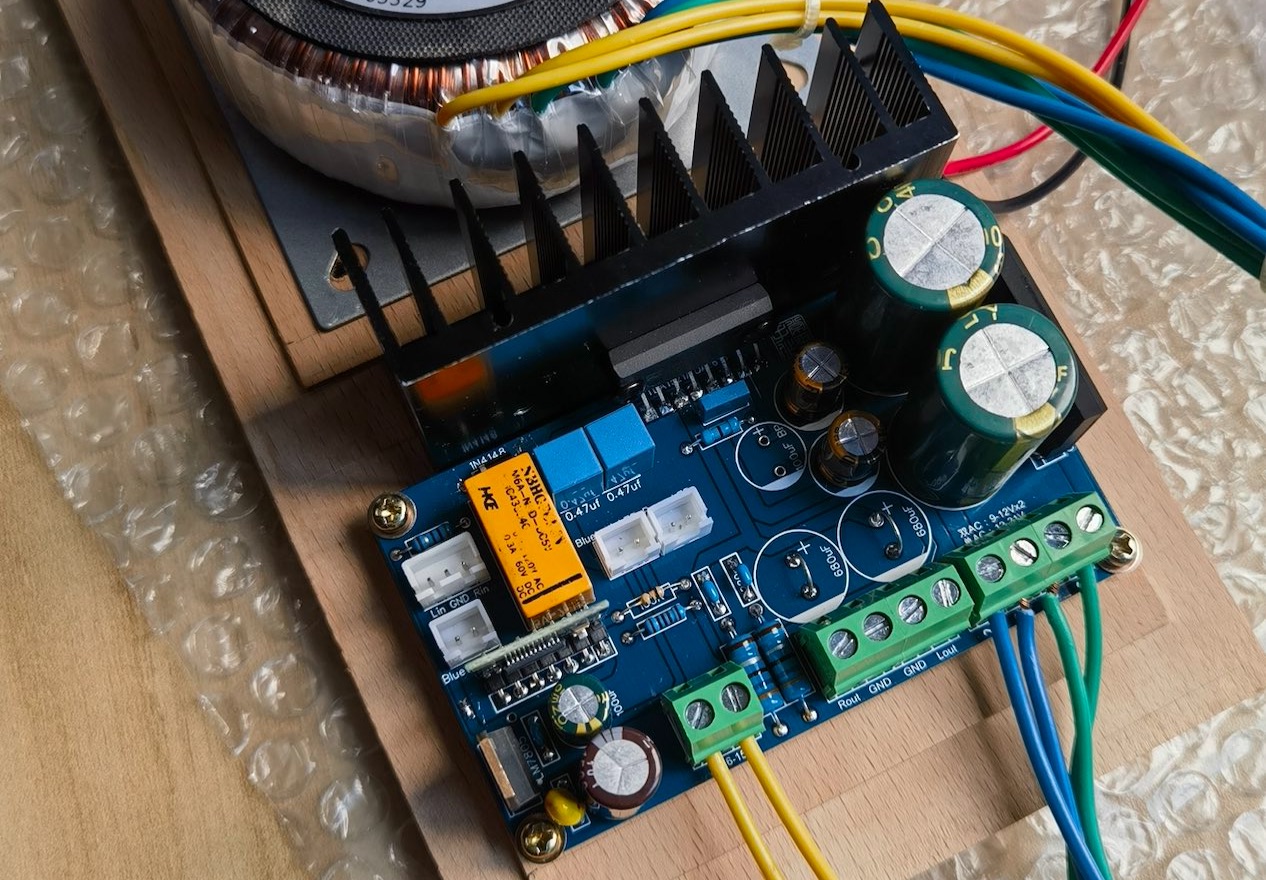

This is a desktop HiFi audio amplifier board that can push speakers below 6.5 inches. It can use TDA2616 or TDA1521 chips. You can choose OTL and OCL connection methods according to your own transformer secondary single and double voltage output. The effect is very good.
