STC MCU Experiment Board-5524Lab

Overview

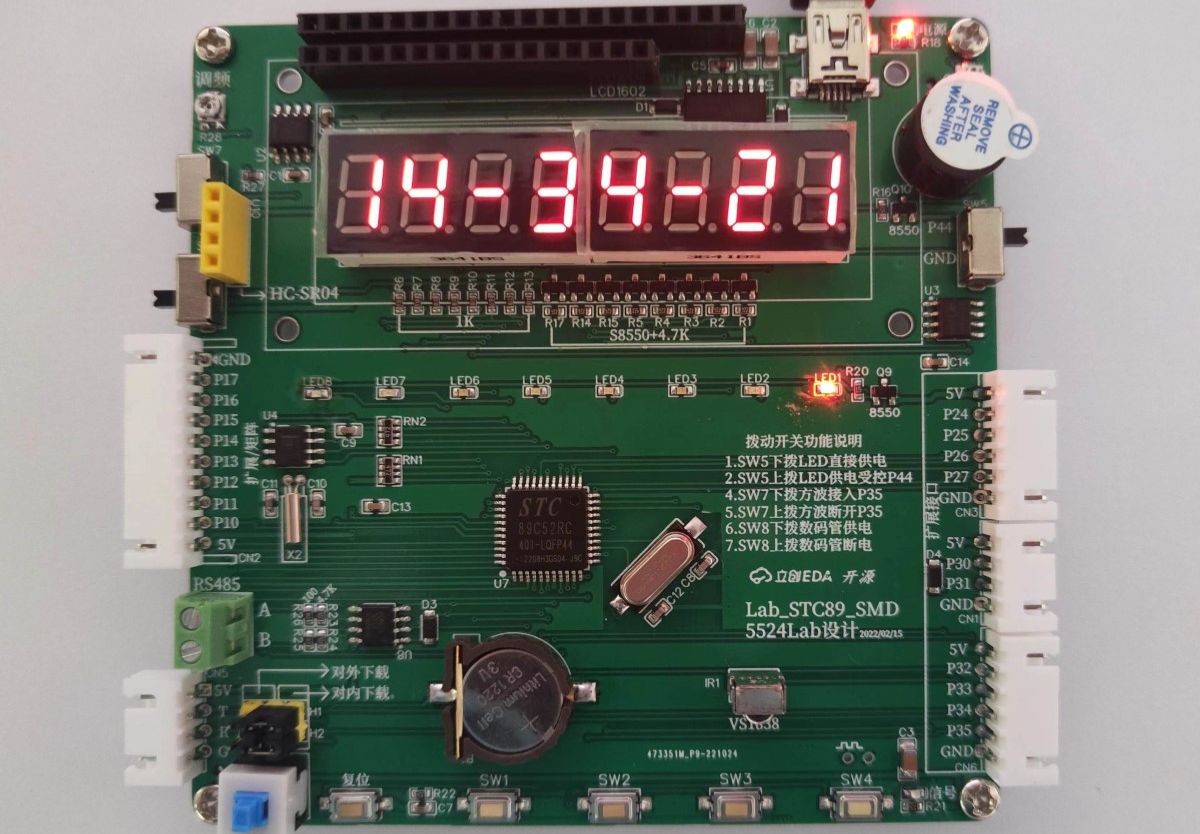

This PCB is an experimental board for the beginner course "Microcontroller Technology and Application" and is suitable for beginners. The microcontroller uses STC89C52RC from Macrocrystalline Technology. It is used to verify basic knowledge and learn some common programming skills. Human-computer interaction includes 8-bit LED, 8-bit digital tube, LCD1602, LCD12864 and four independent buttons; onboard USB to serial port chip (CH340) for easy program download; contains commonly used peripheral chips DS1302, AT24C02. NE555, can learn real-time clock, static storage, square wave signal measurement and other functional programming; common modules include ultrasonic ranging, infrared receiving tube, can learn protocol parsing based on time measurement function programming.
The experimental board has recorded online courses, which can be registered and studied on the Xueyin online platform: https://www.xueyinonline.com/detail/229706513
