[Smart car competition] C car motor drive board

Overview

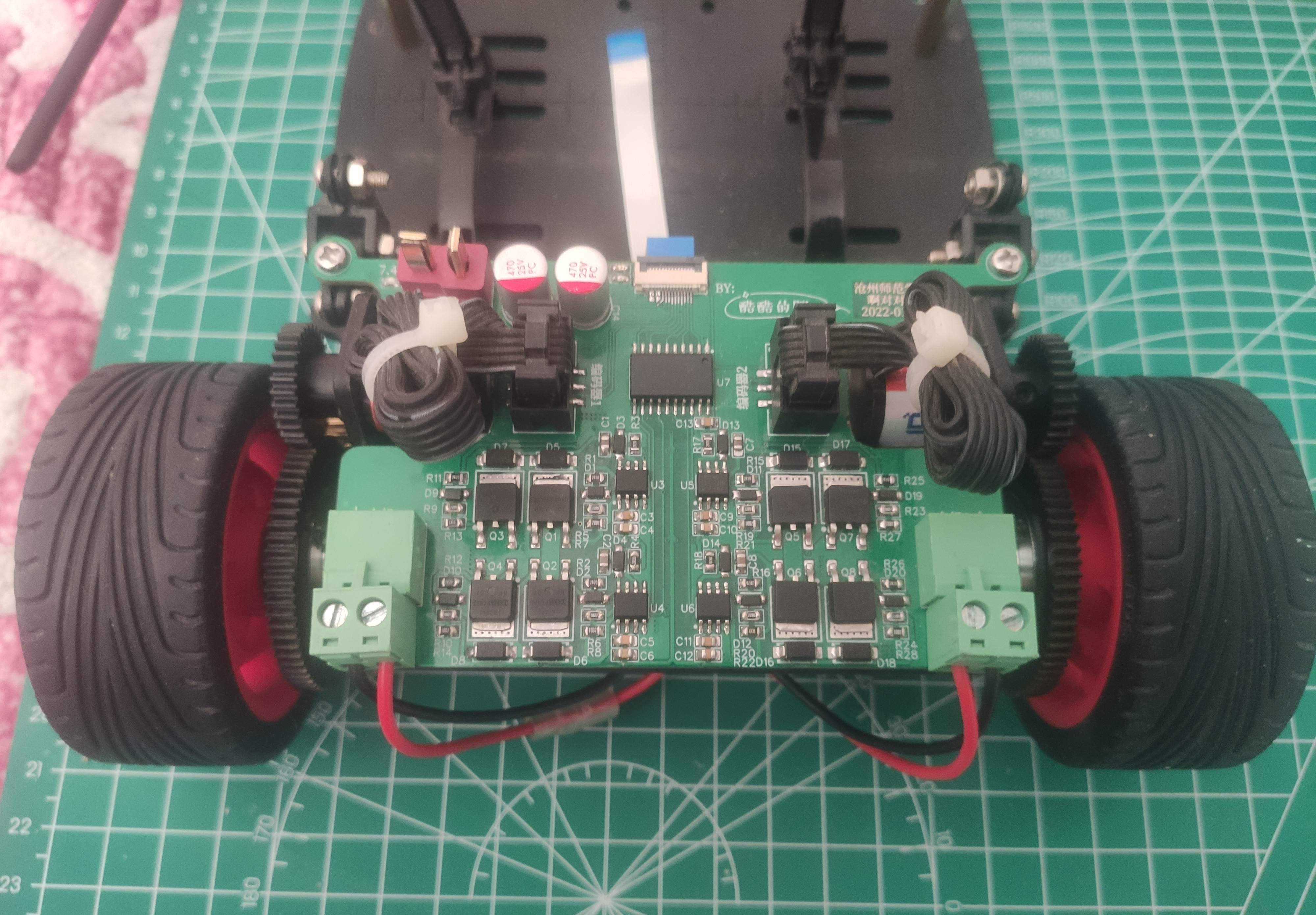

Two IR2104 are used to drive each channel with 4 MOS tubes to form a two-channel full-bridge motor drive circuit, and SN74LS244 is used to isolate the driving part and the control part. The onboard encoder interface can be connected to the motherboard using an FPC cable.
