[Verified]TB6612FNG motor drive module

Overview

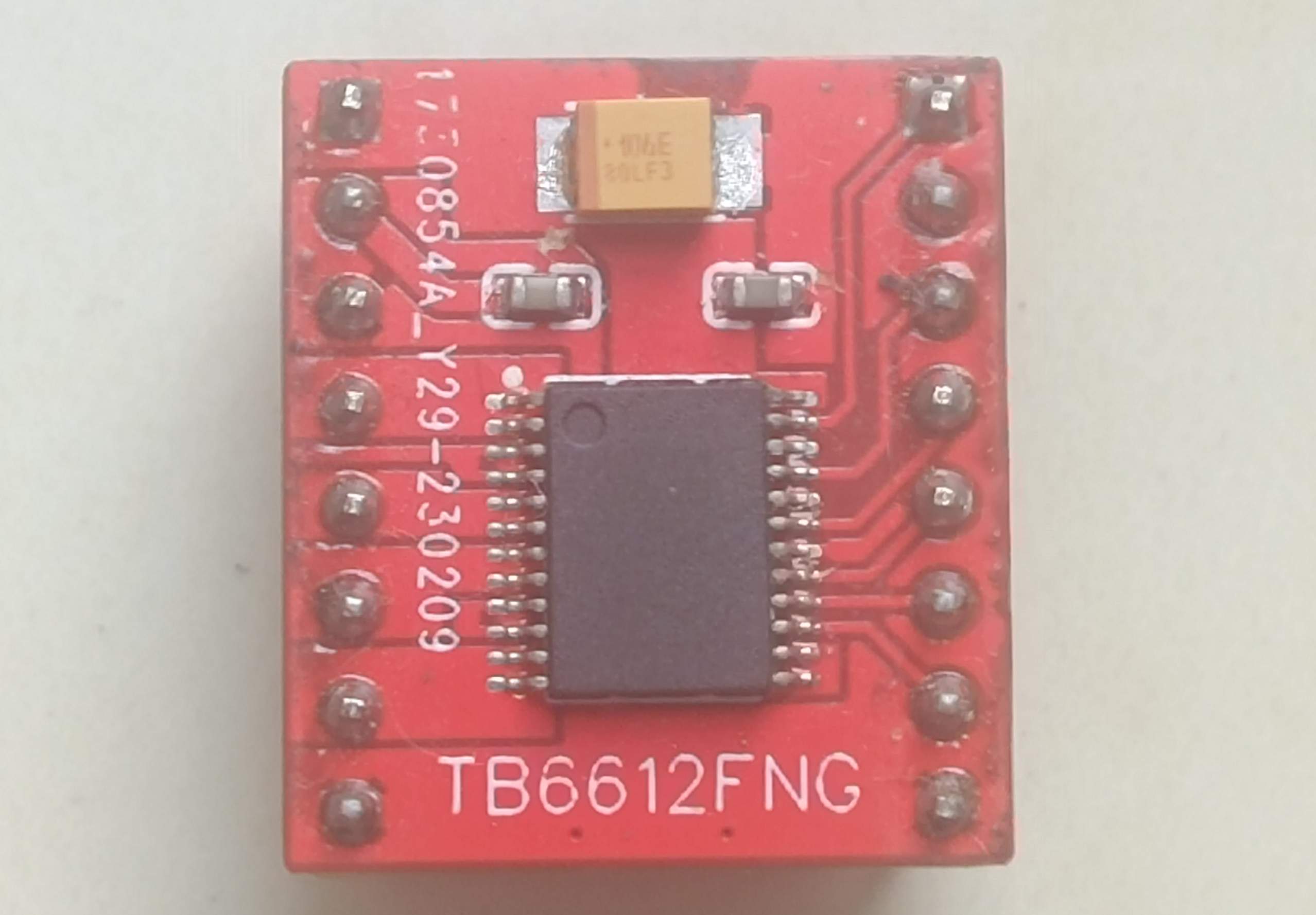

I drew it when I participated in the Liangshan School smart car event. The TB6612FNG motor drive module on the market at that time was very expensive but the chip was relatively cheap, so I drew one myself. It was verified that it can be used. The Liangshan School car next door is already running. Friends in need can use it. If you have any mistakes or suggestions, please point them out.
