PCB Tesla Coil Primary Secondary Coil

Overview

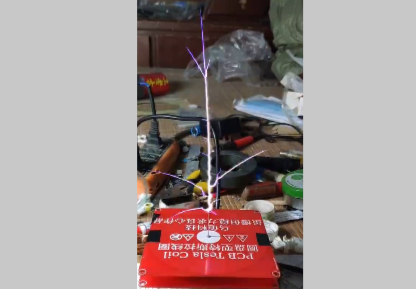

The main function of this board is to replace the primary and secondary coils of the original Tesla coil. The original coils are generally wound by enameled wire. This coil uses PCB to manufacture the primary and secondary coils of the Tesla coil to avoid different artificial coils. Different parameters and spacing result in differences. The coils made according to this file are the same. The capacity of the resonant capacitor can be fixed, and mass production can also be supported. The primary coil is 1 hp and the secondary coil is 192 hp. It is recommended that you use Jiali. Chuang Proofing, the parameters of this PCB are completely in line with Jialichuang's parameters, the demonstration video address [https://www.bilibili.com/video/BV16K4y1v7kh/](https://www.bilibili.com/video/BV16K4y1v7kh /)
