[Physical product verified] ATMEGA special double row burning spring pins

Overview

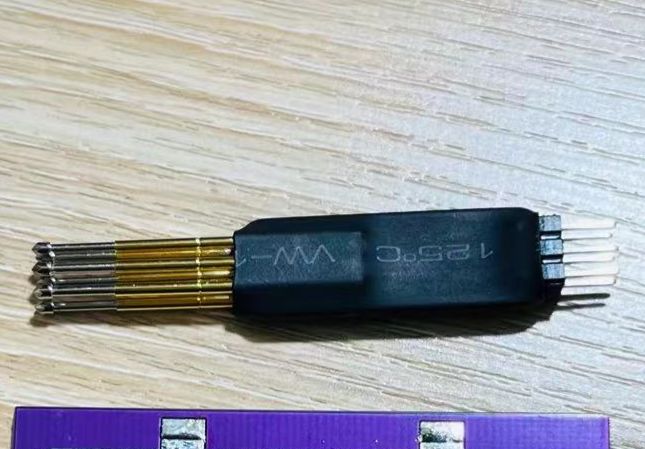

This spring pin is mainly used to burn the GB/GBA card reader.
GB/GBA card reader link: https://oshwhub.com/duyes/shi-wu-yi-yan-zheng-GameBoy-Game
Single Row of spring pins link: https://oshwhub.com/duyes/tan-huang-zhen-ce-shi-ban
I seem to have seen the single row of spring pins I designed for sale on Taobao, and they are quite expensive. . . Don’t be like this, everyone~

The welding process is very simple, and the method of use is also very simple. Just do it and you’re done.
