CP2014 verification board

Overview

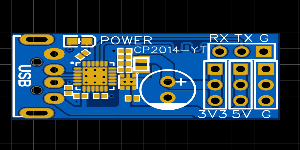

Using CP2104 USB to TTL default 3.3V level plus a TPS62590 buck circuit to convert 5V to 3.3v, using 1000UF solid capacitor for filtering is more stable, and leads out TXD, RXD, 3V3, 5V, GND for easy use, and there is a power light for convenience Observe the working status.
