STC51 core board

Overview

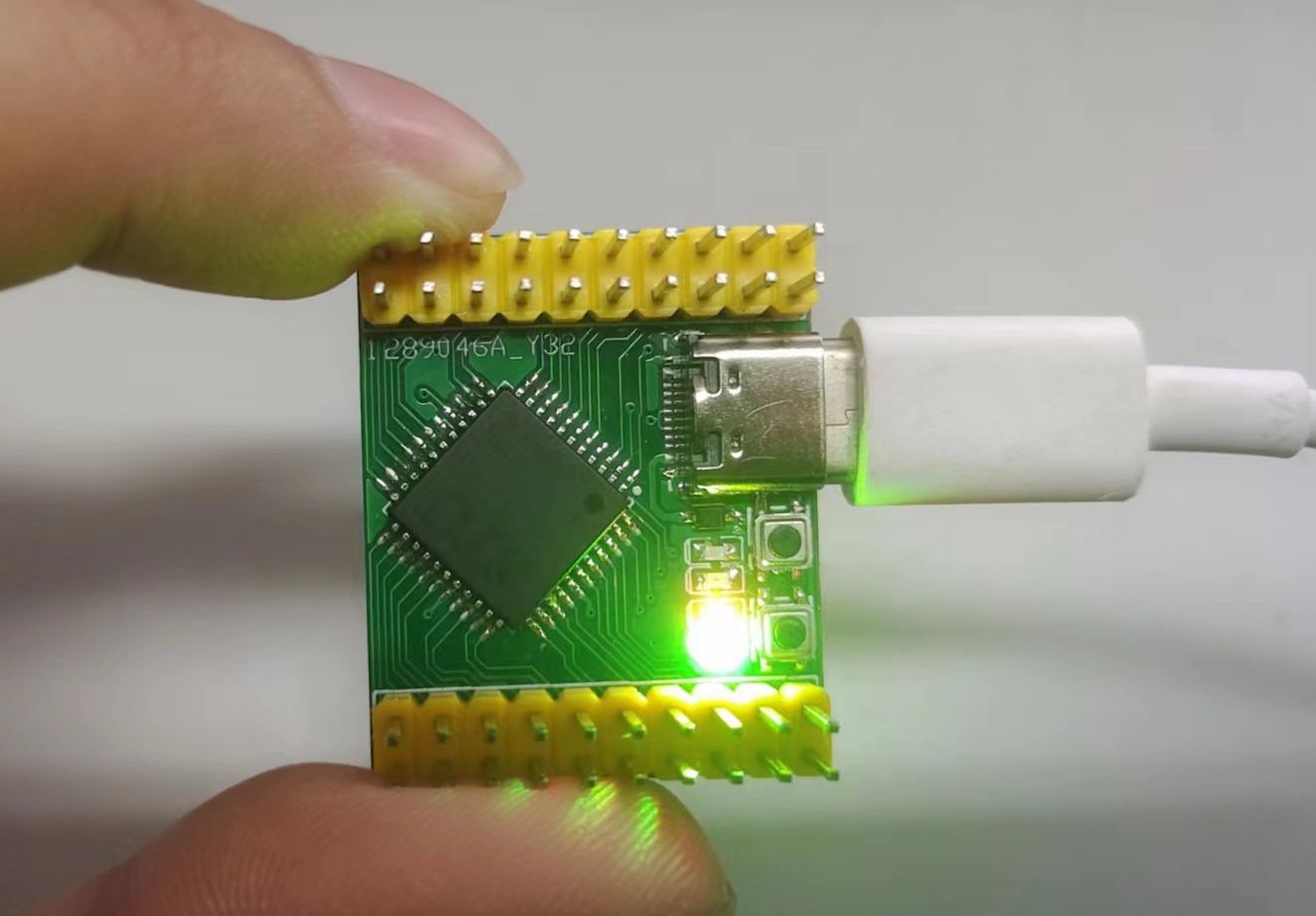

This project uses STC89C52RC, the smallest system board designed for the main MCU, which is convenient for beginners to use and has simple peripheral circuits.

Use CH340E as a USB to TTL converter and design a one-click download circuit to achieve power-off reset without plugging or unplugging.

The main power supply part has overcurrent and overvoltage protection to effectively prevent the MCU from burning out.
