**NUVOTON - MINI58ZDE Minimum Development Board**

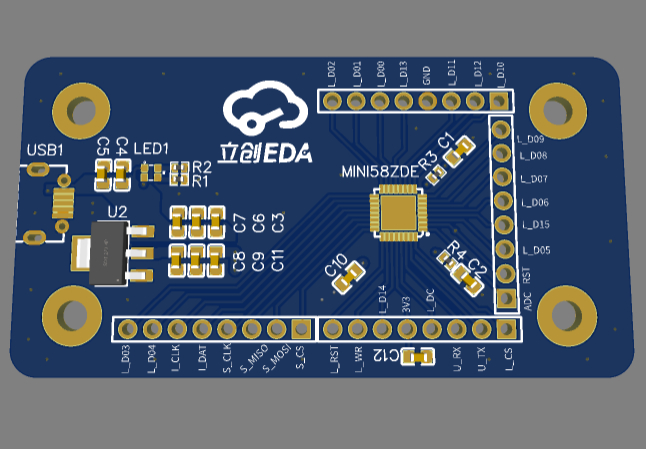

The minimum development board is mainly a test version for LCD. It comes with a 16-bit LCD interface, which is convenient for debugging LCD.
Simple, compact and easy to use.

The NuMicro® Mini58 series is a 32-bit microcontroller with built-in ARM® Cortex®-M0 core, which can run up to 50 MHz. It has 32K bytes of Flash memory, 4K bytes of built-in SRAM, configurable data Flash (and program Flash memory Shared), 2K independent Flash bytes are used for online system programming (In System Programming) purposes. NuMicro® Mini58 series is embedded with rich communication peripherals, such as: I/O interface, timer, UART, SPI, I2C, PWM, ADC, watchdog and low voltage reset and undervoltage detection, 96-bit UID and 128-bit UCID, Making the NuMicro® Mini58 series suitable for a wide range of applications.

**Application areas**

Model aircraft ESCs, optical modules, industrial control, data processing, etc.

**Key Features**

| | | |
| --- | --- | --- | |
**•** | **Core** | |
| | - | ARM Cortex®-M0 |
| | - | Maximum operating frequency 50 MHz |
| | - | Operating voltage: 2.5V ~ 5.5V |
| | - | Operating temperature: - 40 ~ 105 ℃ |
| | | |
| **•** | **Memory** | |
| | - | 32 KB Application Flash |
| | - | Embedded 4 KB SRAM |
| | - | Configurable Data Flash |
| | - | Support online system update ISP (In-System Programming) |
| | - | Support online circuit update ICP (In-Circuit Programming) |
| | - | Support IAP (In-Application Programming) |
| | |
| **•** | **Analog to Digital Converter (ADC)** | |
| | - | 8 channels available |
| | - | 10-bit resolution |
| | - | Up to 300 kSPS (samples per second) |
| | | |
| **•** | **Pulse Width Modulation ( PWM )** | |
| | - | Built-in 16-bit PWM generator, can output 6 channels of PWM or 3 sets of complementary paired PWM | |
| - | Capture ADC function |
| | | |
| **•** | * *Built-in two sets of comparators** | |
| | | | |
**•** | **Communication interface Connectivity** | |
| | - | One set of SPI (up to 36 MHz) |
| | - | Two Group I²C (up to 400 kHz) |
| | - | Two groups of UART (up to 1 Mbps) |
| | | |
| **•** | **Clock Control** | |
| | - | External 4 to 24 MHz high speed crystal oscillator |
| | - | Internal 22.1184 MHz oscillator (1% accuracy 25 ℃, 5 V) |
