ESP8266_Building Blocks_main

Overview

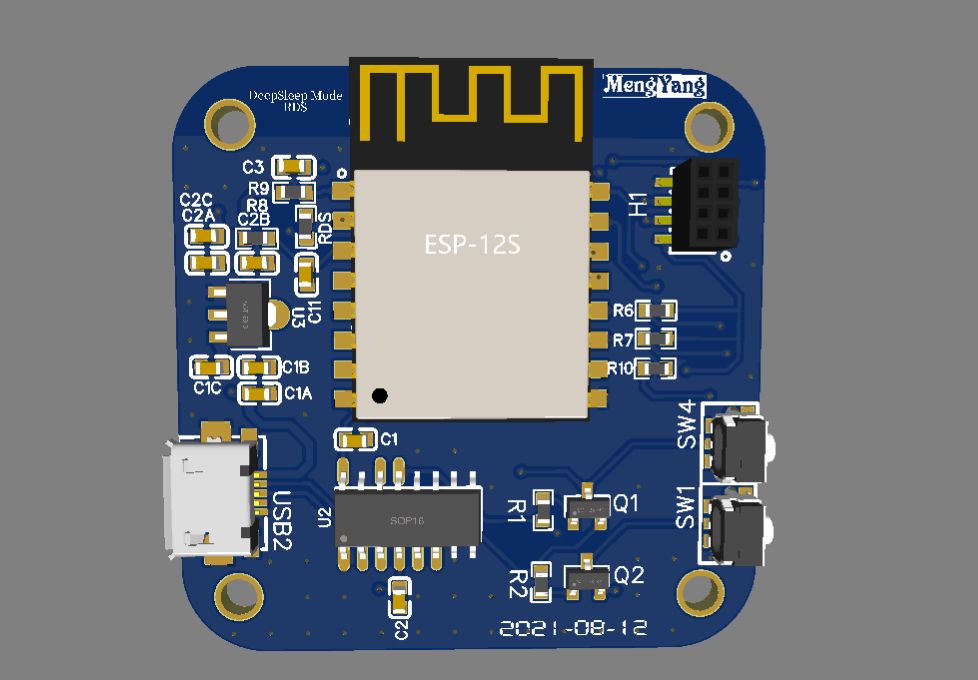

The ESP8266 of the building board series takes ESP8266 as the core and adds automatic download circuits and power circuits. The connection mechanism with the lower building board is a 1.27mm patch pin header. In order to facilitate expansion and stocking, 2 rows are used. , you can weld it yourself as needed.
The program originates from Bilibili, a well-known open source project, weather clock. I forgot who it belongs to. There should be relevant instructions in the program.
