Interstellar tars robot pcb2

Overview

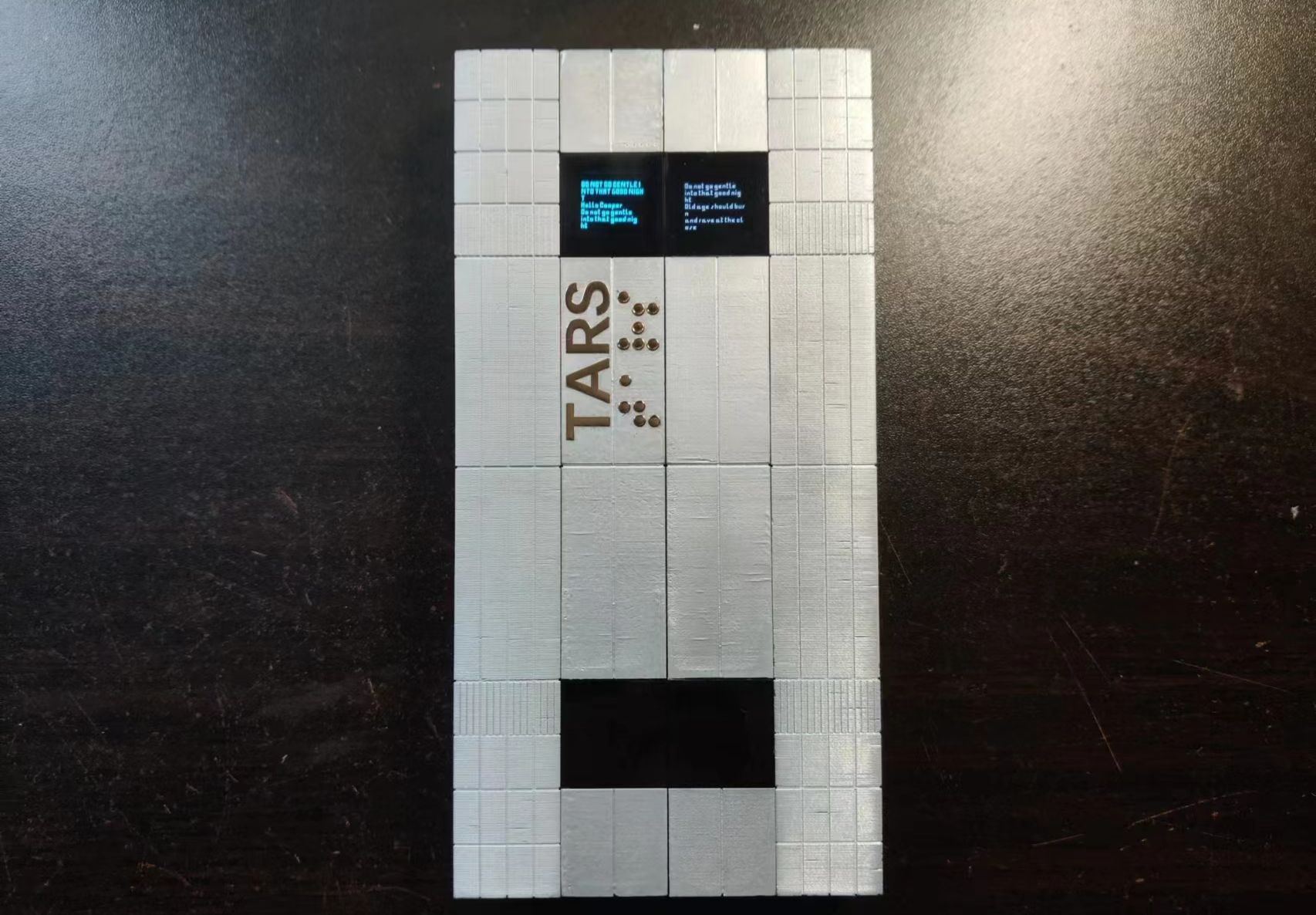

On the PCB on the right side of the interstellar tars robot, a 3.7v lithium battery power is input and then boosted to 5v to supply power to arduino nano, esp01 and oled to display the time, date and subtitles on the oled to simulate the robot in the movie. For specific information, please download the compressed package .
