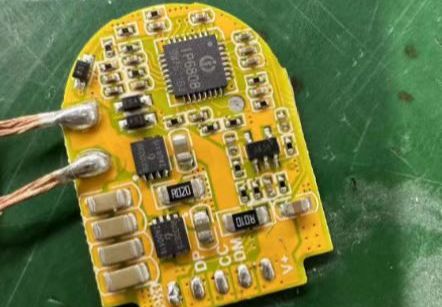

Apple magnetic wireless charging solution based on Ingenic IP6808

Apple 12 wireless charging pop-up window 15W solution (Ingenics first-level agent - Kefaxin makes an exception to share)
Overview
IP6808 is a wireless charging transmitter control SoC chip, compatible with the latest WPC Qi v1.2.4 standard, supports A11 coil, supports 5W, Apple 7.5W, Samsung 10W, EPP 15W charging. IP6808 detects the wireless receiver through analog ping and establishes communication with the receiver, then starts power transmission. IP6808 decodes the communication data packet sent from the receiver, and then uses the PID algorithm to change the oscillation frequency to adjust the output power on the coil. Once the battery on the receiver is fully charged, IP6808 terminates power transmission.
The chip integrates a full-bridge drive circuit and a voltage & current two-way ASK communication demodulation module, with high integration, reducing the solution size and BOM cost.
Application products
Back clip, wireless charging base Car wireless charging device
Single 5W application
9V input 5W/7.5W/10W application
12V input 5W/7.5W/10W/15W application
Input withstand voltage up to 25V
Integrated input fast charging protocol
Integrated NMOS full-bridge driver Integrated
internal voltage/current demodulation
Support FOD foreign object detection function
Highly sensitive static foreign object detection
Support dynamic FOD detection
FOD parameters are
adjustable Low static power consumption and high efficiency
Static current 4mA
Measured system 15W wireless charging efficiency up to 80% Compatible with NPO capacitors and CBB capacitors
Support finished product firmware online upgrade
Dynamic power adjustment function (DPM) for USB power supplies with insufficient power supply capacity
Support chargers as low as 5V 500mA
Input overvoltage and overcurrent protection function
Support PD3.0 input request
Support NTC
for 2-way LED indication of various system status
Package 5 mm × 5 mm 0.5pitch QFN32
 QFN32
