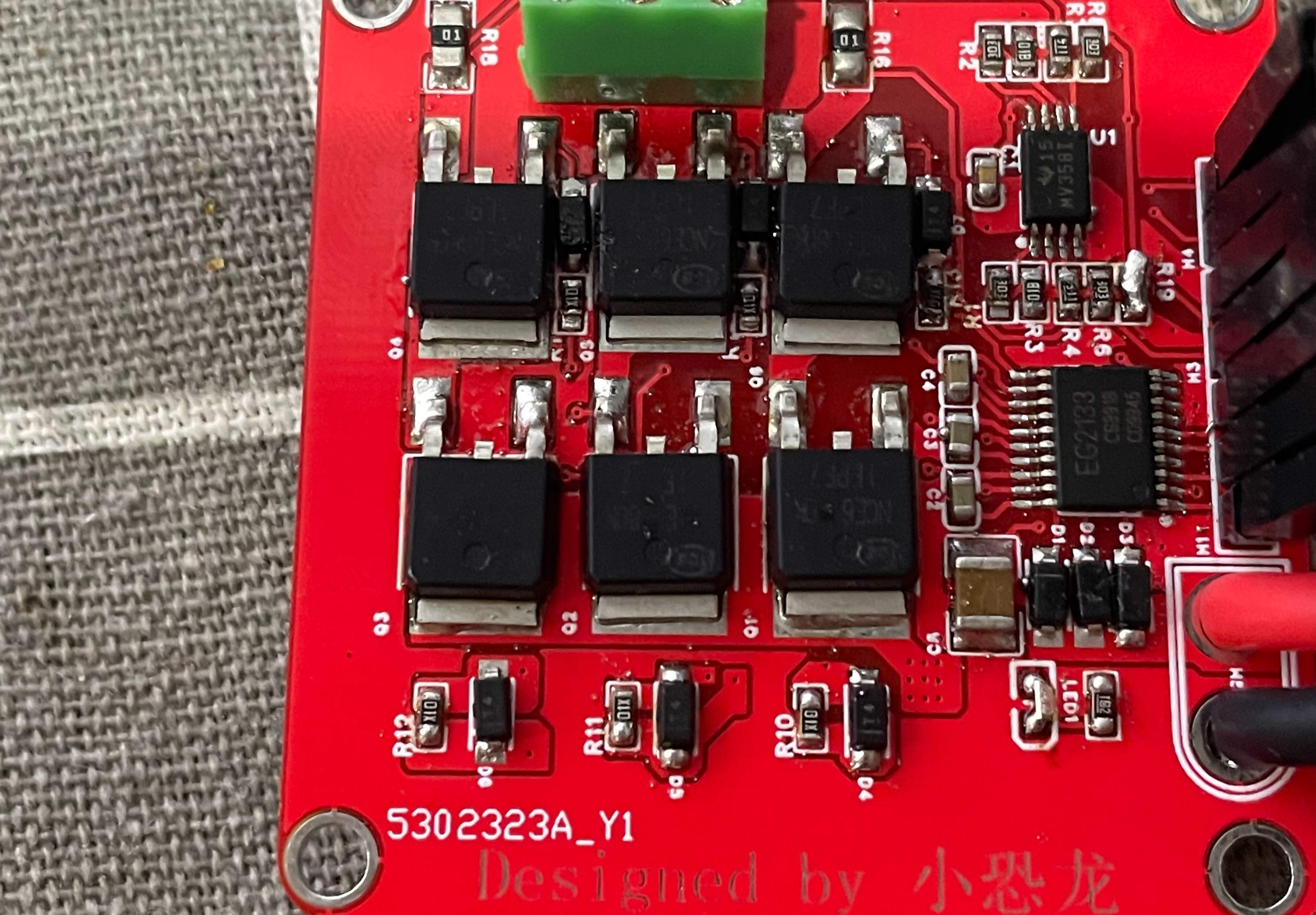

Ultra-low-cost foc driver board for less than 20 yuan

Overview

Predriver uses EG2133, about 1.2 per
mos with free shipping, uses NCE6080K, about 0.9 per free shipping,
uses lmv358 current sampling, 3.9 per free shipping,
key components cost less than 12 yuan
