Receiver based on HK32F030MF4P6

Overview

The receiver based on HK32F030MF4P6 is used with the "remote control based on HK32F030MF4P6".
There are 6 channels in total, 4 of which are PWM signal outputs, which can directly control the servo or ESC; 2 channels of high and low level control signal outputs, which can be connected to buzzers or LED lights.

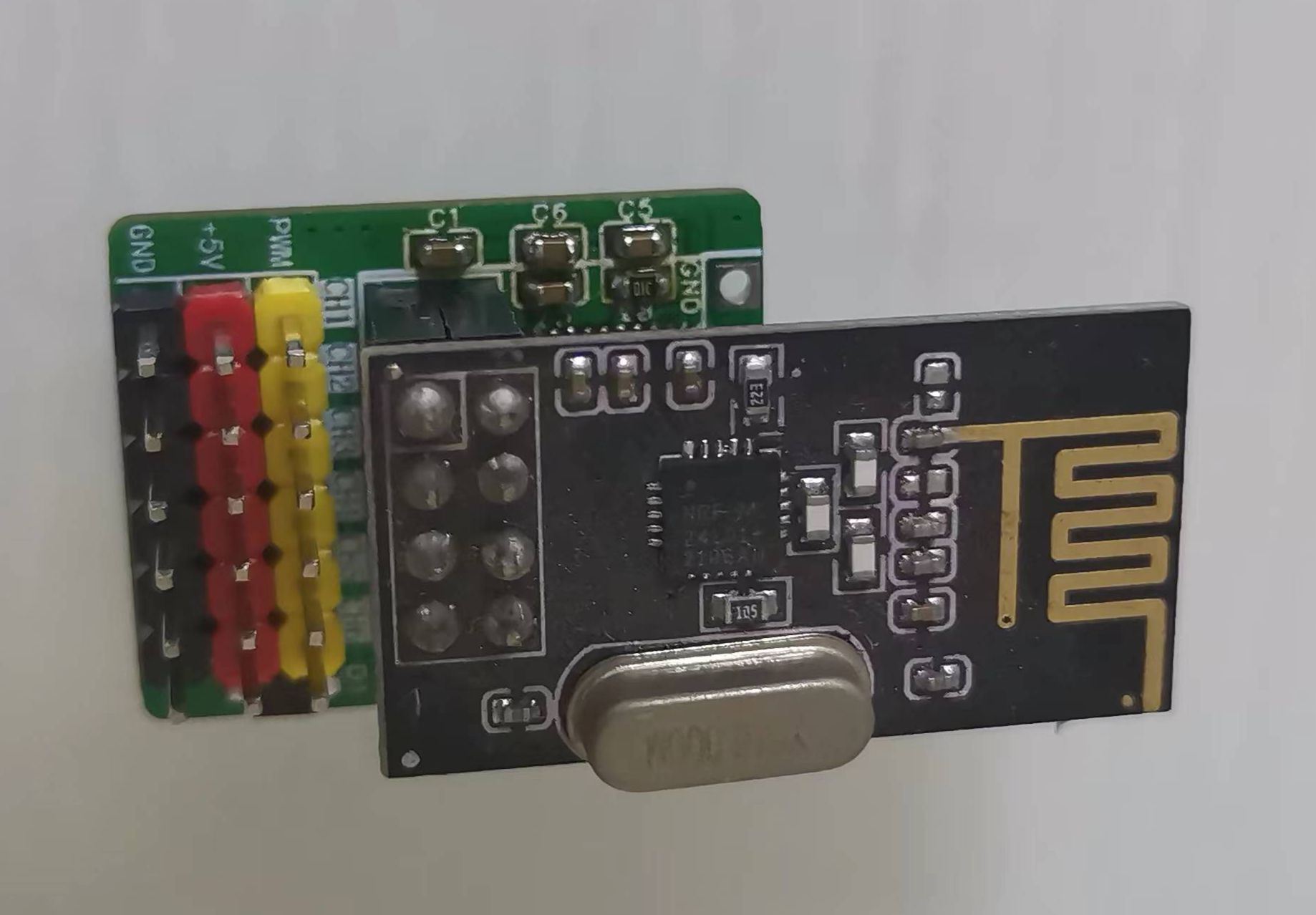

Remote control link: https://oshwhub.com/myself1820/ji-yu-hk32f030mf4p6-de-yao-kong-qiPhysical

picture:

Design Files

HK32F030M remote control-receiver program (nRF24L01_4-channel PWM_3-channel LED)-20230531.rar
