Introduction

"XBoard NANO development board" is a series of development boards with different main controls (100pin and smaller microcontrollers) but consistent appearance and pin functions. The main purpose of this series of development boards is inter-board communication protocol testing (development board + development board) , Single module test (development board + evaluation board)

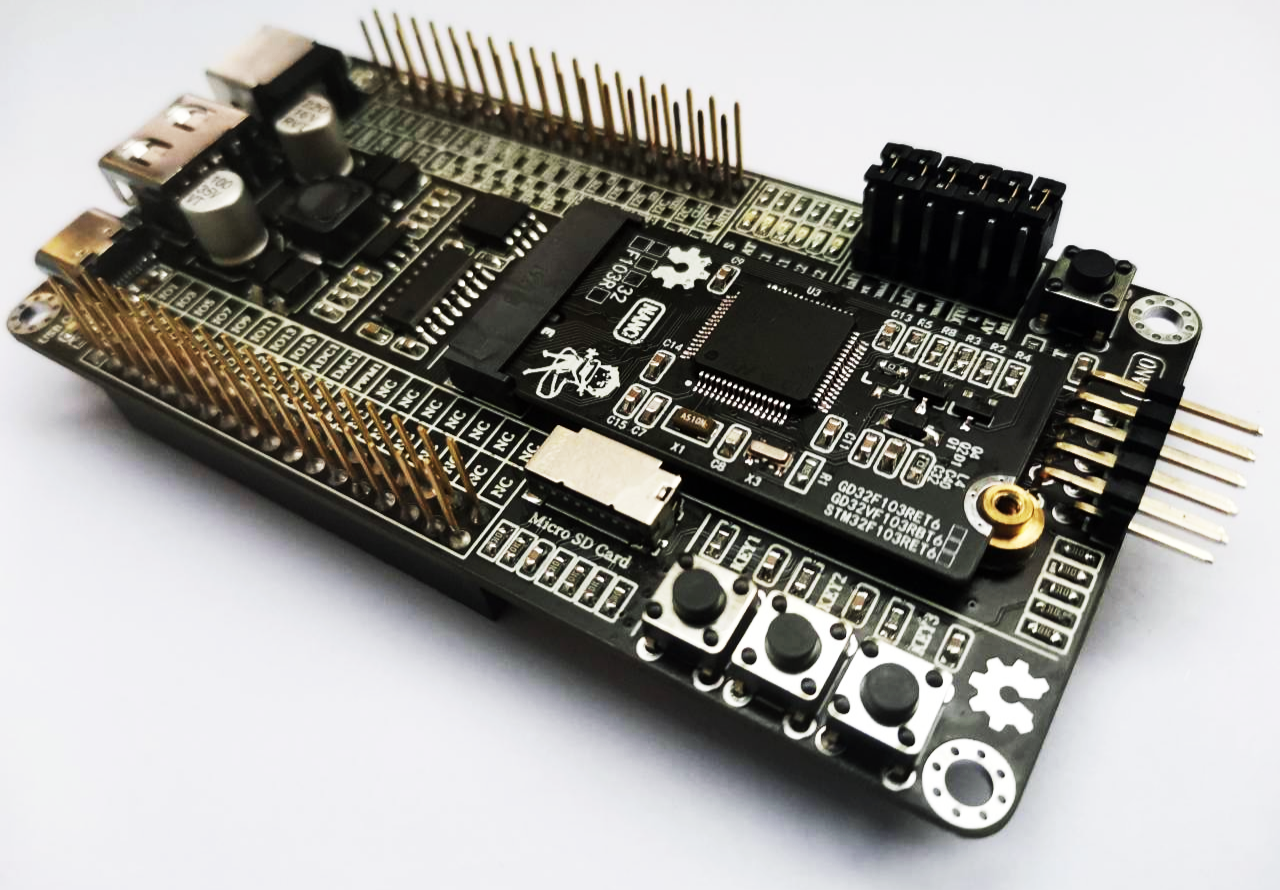

"XBoard NANO Development Board" consists of a carrier board and a core board, which are connected through the M2 E Key interface. This project is the carrier board part of the "XBoard NANO Development Board".

Some core boards:

This series of development boards are not pin-compatible with the front-end series "XBoard Standard Development Board" (obsolete)

On-board resources

12V power input/output pin

5.0 power supply (maximum current 2A) input/output pin

3.3 Power input (maximum current mA) input/output pin

Reset input/output pin (switchable)

RTC power input

SPI interface*1&CS*3

SDIO interface＊1

UART interface*2

I2C interface*1 (including interrupt pin)

I2S interface*1

CAN interface*1

Digital IO*16

ADC channel*2

DAC channel*2

PWM channel*2

SD card interface*1 (SPI mode)

SWD interface*1

Type C (USB2UART interface, using Serial1)*1

DC044 12V power interface*1

Ordinary buttons*3

Reset button*1

12V power indicator light*1

USB connection status indicator*1

3.3V system power indicator light*1

Serial port indicator lights*4 (2 per group)

Serial port line sequence exchange pin header * 2 sets

BOOT0 level switching pin header*1

RTC power input selection pin header*1

Function selection DIP switch*3

Modify records

(November 17, 2020 13:22) Adjusted the spacing of USB differential lines; deleted redundant vias in some networks
