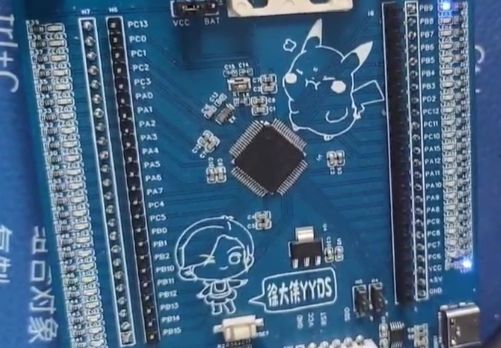

STM32F072RBT7/ APM32F072RBT7 core board

Overview

This MCU core board is compatible with STM32F072RBT7 and APM32F072RBT7.
Through this board, you can directly learn common peripherals such as UART, TIMx, CAN, ADC, RTC, USB, backup domain, etc.
All ios are independently derived and have status indicators.
Double row needle design, one row facing down and one row facing up. The downward-facing pin header is very suitable for verifying the project in the form of a homemade baseboard, and the upward-facing pin header can be connected to a logic analyzer, oscilloscope and other equipment!
