open channel SSD prototype

Overview

Design purpose:
Design a master-editable SSD storage hardware for testing the master scheduling algorithm;
dev3.0 iterative version
selection:

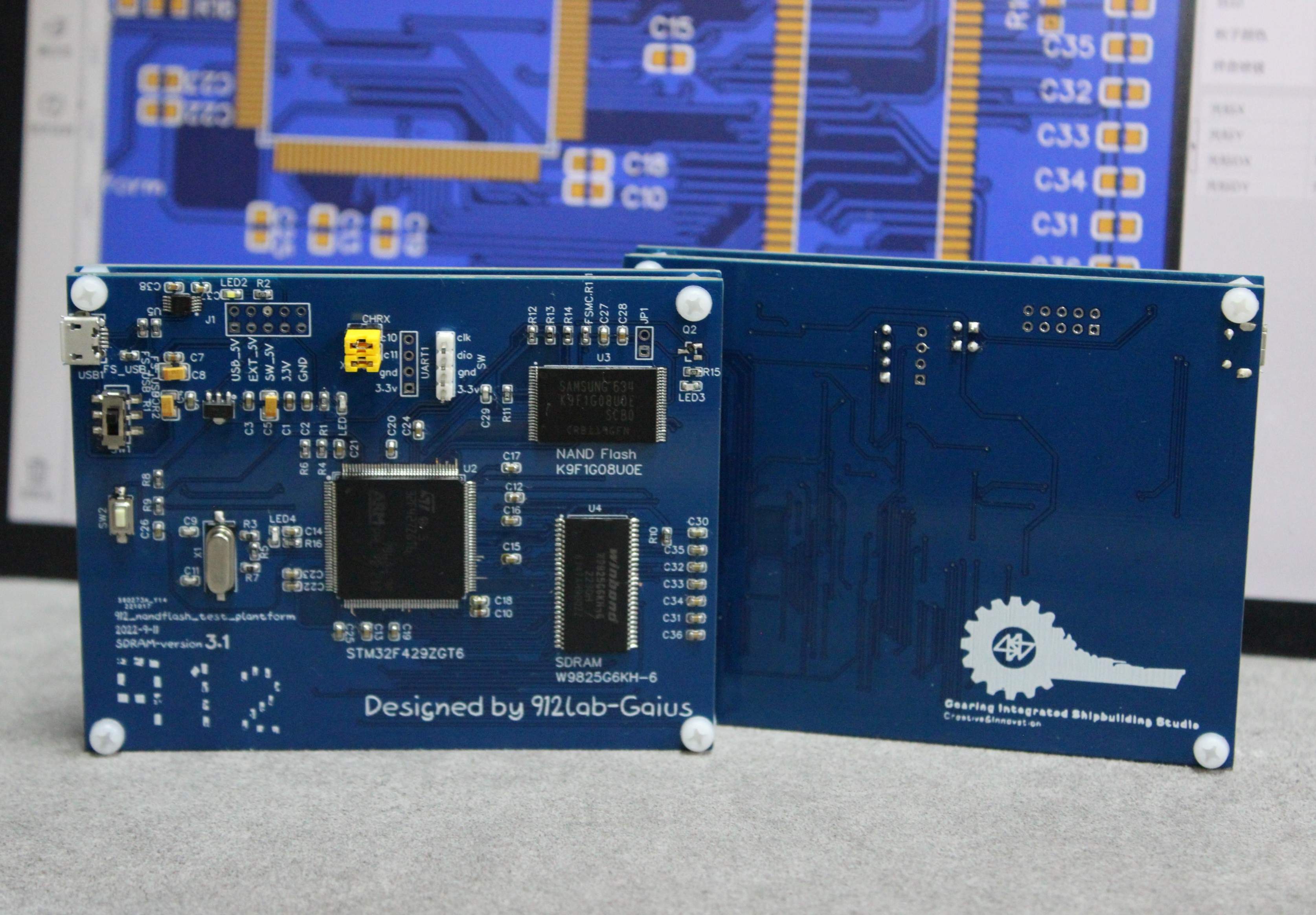

MCU: F429ZGT6xx
NAND: K9F1G08U0E//Samsung
SDRAM: W9825G6KH-6
Note:
Added ch340e ( Verified) Added USB communication (verified)
