[Verified] 4k one-line communication driver board based on ldr6023b main control

Overview

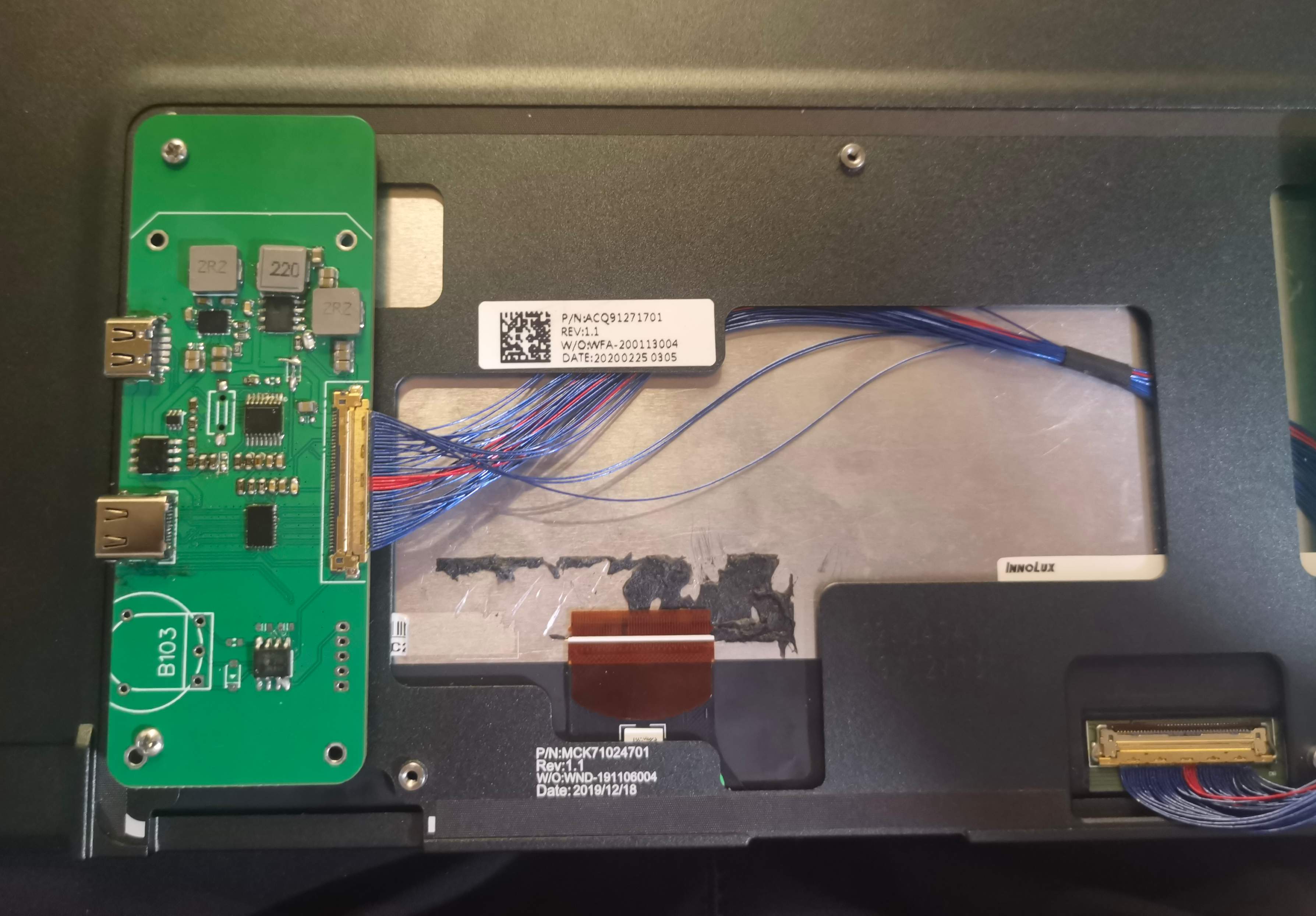

4k60hz one-line portable screen driver board, dual C ports, supports reverse power supply, outputs edp4lane, up to 4k60hz, and USB2.0 leads to
the updated ldr6023a version, supports 0-15 watt power settings, supports high power and high brightness large screens, open source Link: https://oshwhub.com/sinonzxc/ldr6023_copy_copy_copy_copy_copy_copyNew users recommend version 6023a, which is more flexible
