NAE20S08-A

Overview

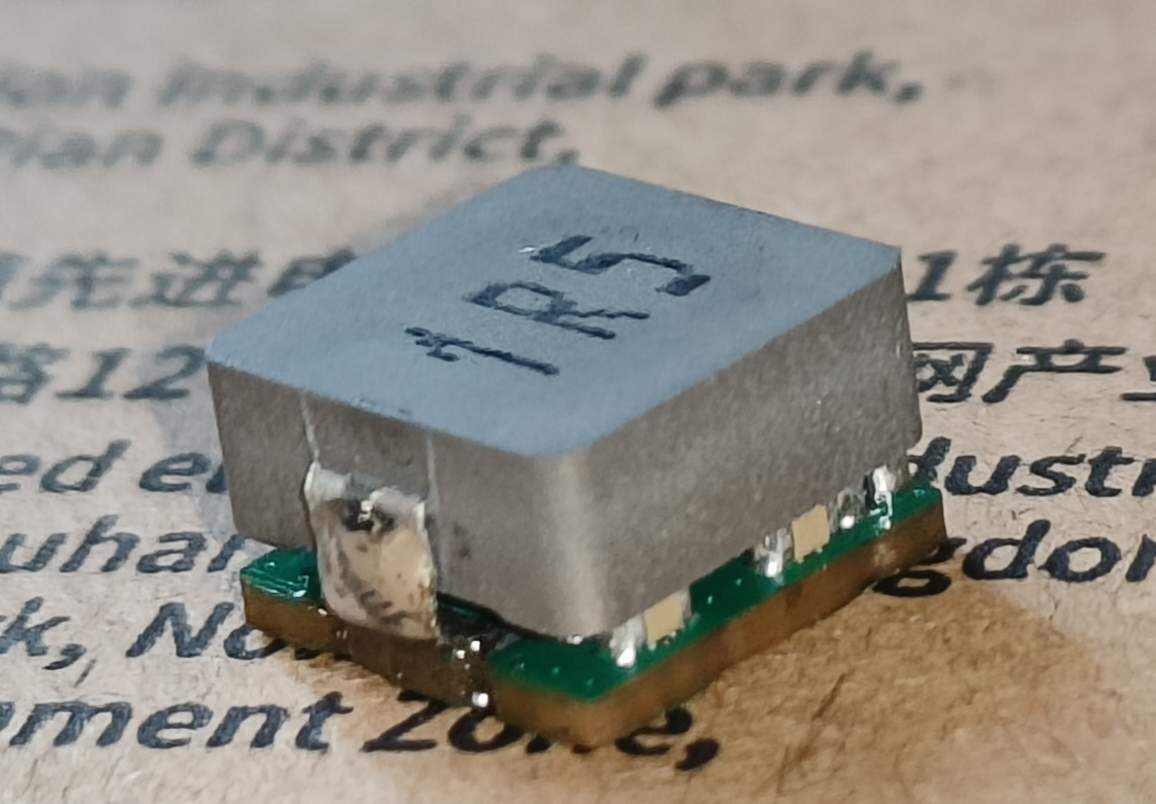

The NAE20S08-A power module is based on the SY8288A/jw5068A series power supply IC. Volume: 10x10x6mm. Input range: 4-23vin. Output: 0.6-20V@8A. Package: LGA9. Features: The module integrates input and output filter capacitors inside, with zero peripherals and a very small footprint.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
