ESP32S3 expanded memory software development board-0603 package

Overview

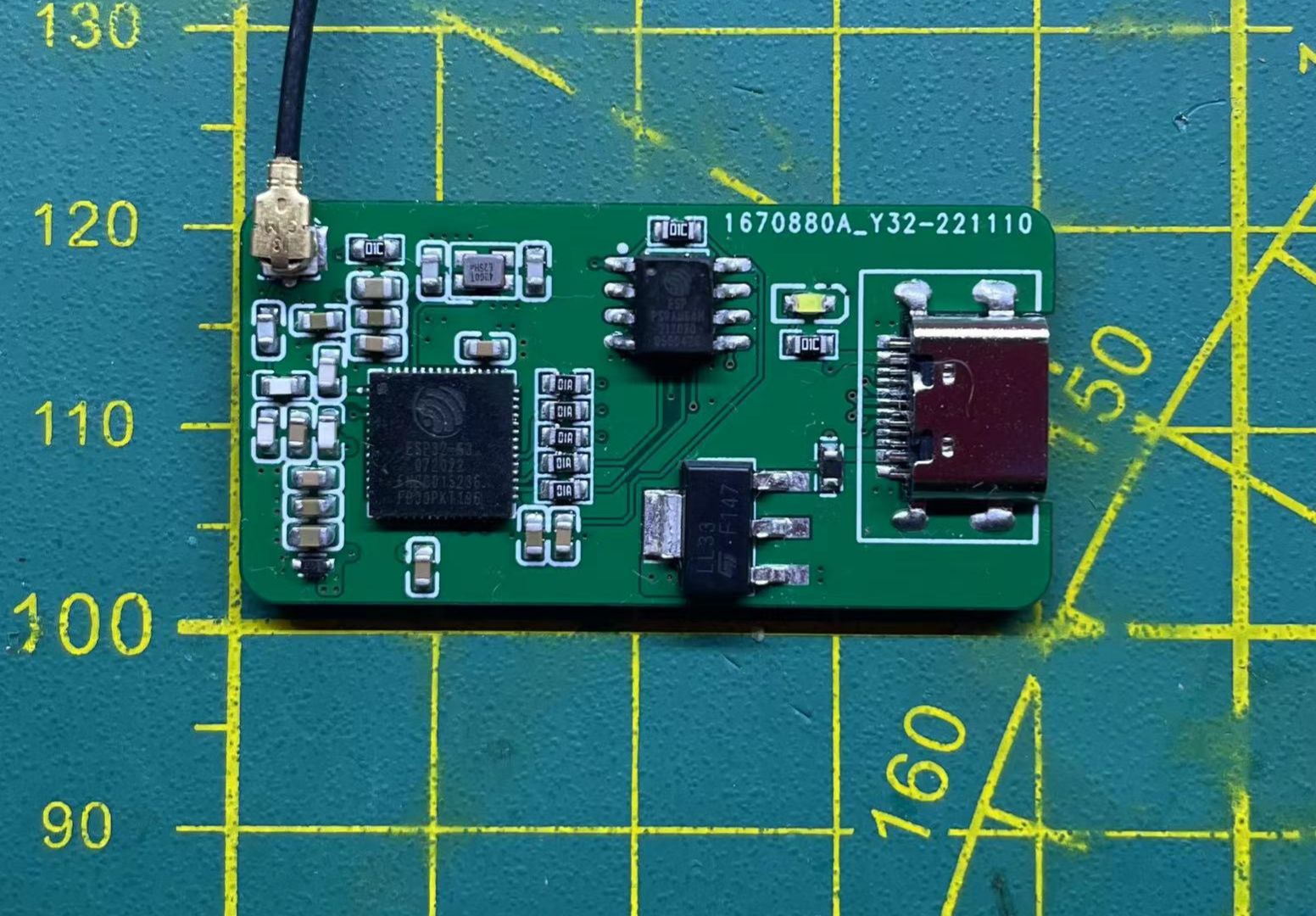

Referring to the schematic diagram of an ESP32-S3 from Kaiyuan Square, the Flash-related circuits were removed, and TYPEC's USB data transmission and power supply ports were added to create a 40MMx20MM small-size network development board.

This board does not have any IO ports. , so that you can focus on the development of ESP-IDF, develop such as WEB websites, or applications that you can think of that can be implemented in C or C++. It is a good companion for practicing C or C++.
