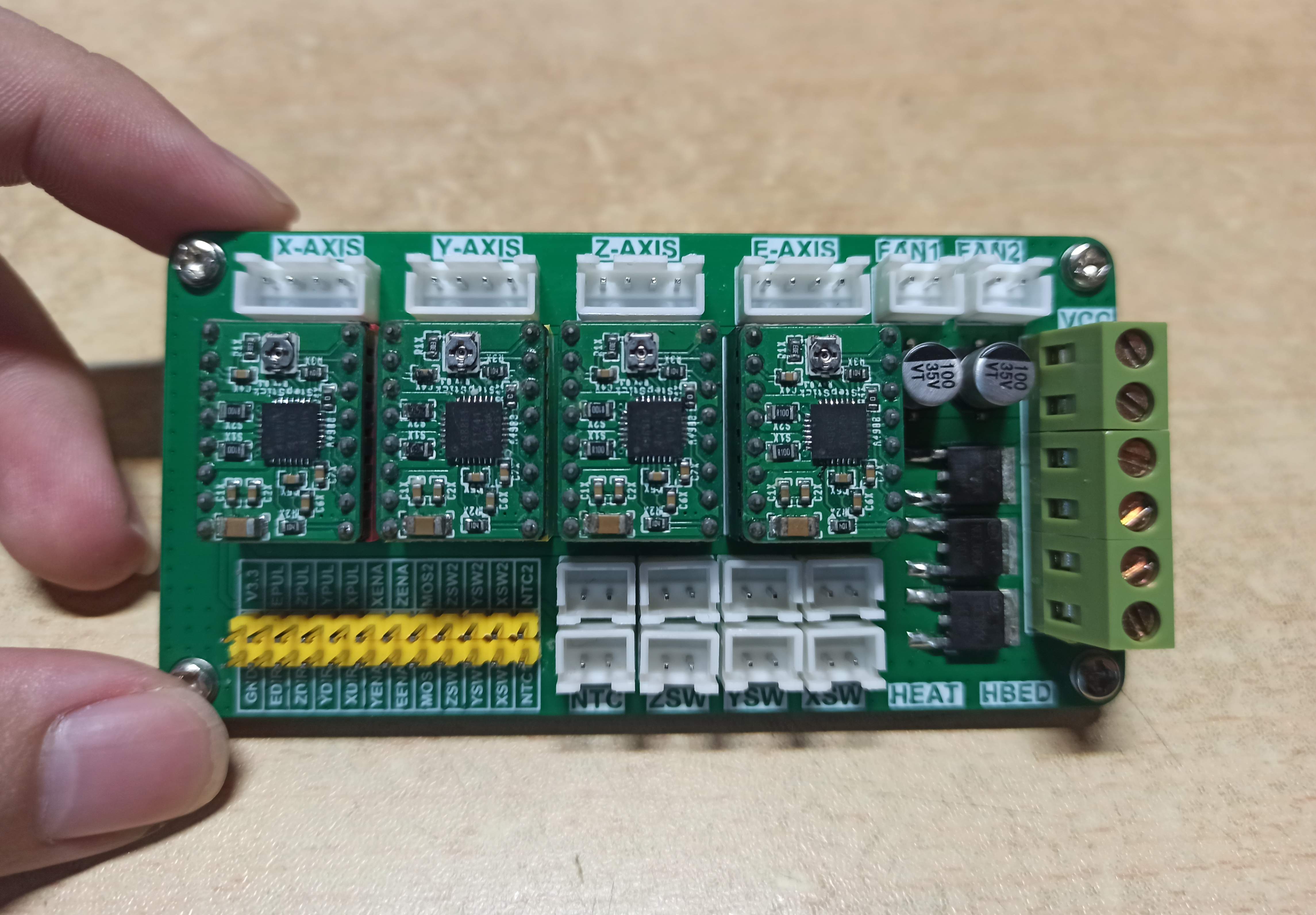

Four-axis stepper motor driver adapter board

Overview

Ordinary stepper motor module, slide rail/writing/printing/stepping/temperature control.

Module resources:
4 stepper motor interfaces,
6 limit switch interfaces,
2 NTC temperature measurement interfaces,
2 cooling fan interfaces, 1

high-power hot bed interface (dual MOS tube),
1 heating rod interface (single MOS tube)
, two The power output interface does not have freewheeling/absorption protection. It is best to add it when connecting to inductive loads such as electromagnets.
