L298N four-way motor driver

Overview

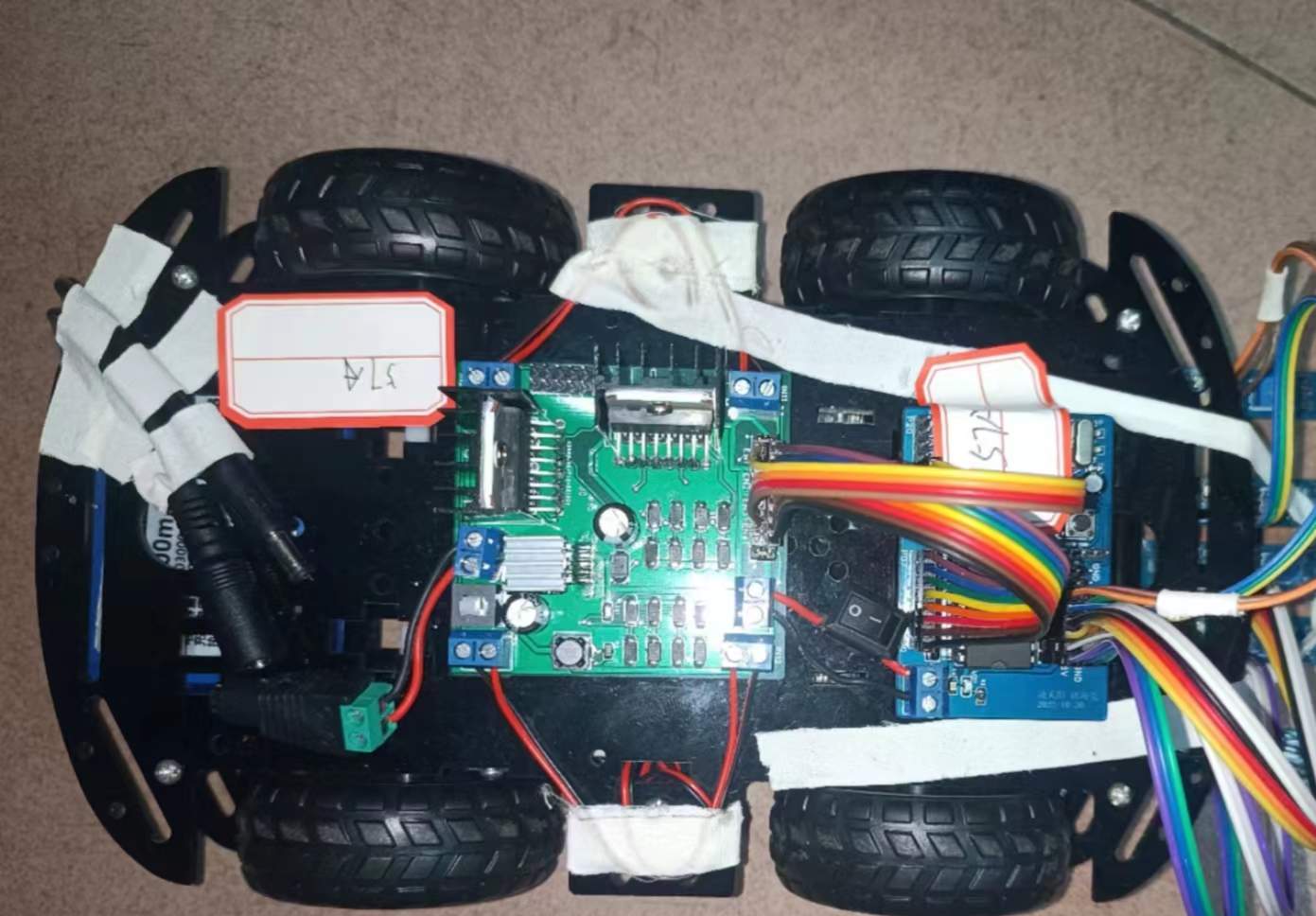

Two L298N driver chips form a four-way motor driver, and
the LM2596S_5.0 step-down chip can output a drive current of 3A.
The blogger successfully used it to race the trail car without any problems.
The self-locking switch uses 8.5*8.5, and there is nothing else to pay attention to.
