HEM12232-09 adapter board

#HEM12232-09 module

## 1. Description:
Green background black character dot matrix LCD screen, with backlight, resolution 122*32, low power consumption and wide voltage. SPI signal communication. Attached are attached dimensional drawings and test procedures.
✔[Nude screen purchase jump](https://item.taobao.com/item.htm?spm=a21dvs.23580594.0.0.52de3d0dKesGlA&ft=t&id=694593605752)



## 2. Parameters:

| -- | -- | - - |
| -----| :-----------: | :--: |
| Operating voltage | 3.3~5V | |
| Display size | 122*32 | |
| Backlight | GREEN_LED_2 .7V_10mA | |
| Main control | ST7567 | |
| Communication method | SPI | |

## 3. Module definition:

Front from left to right

| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| :- --: | :---: | :--: | :---: | :--: | :---: | :---: | :----: |
| GND | VCC | CS | RST | AO | SCL | SDA | LED_ |


## 4. Size:


![SIZE.png] ![Dimensions.png]
## 5. Actual picture:

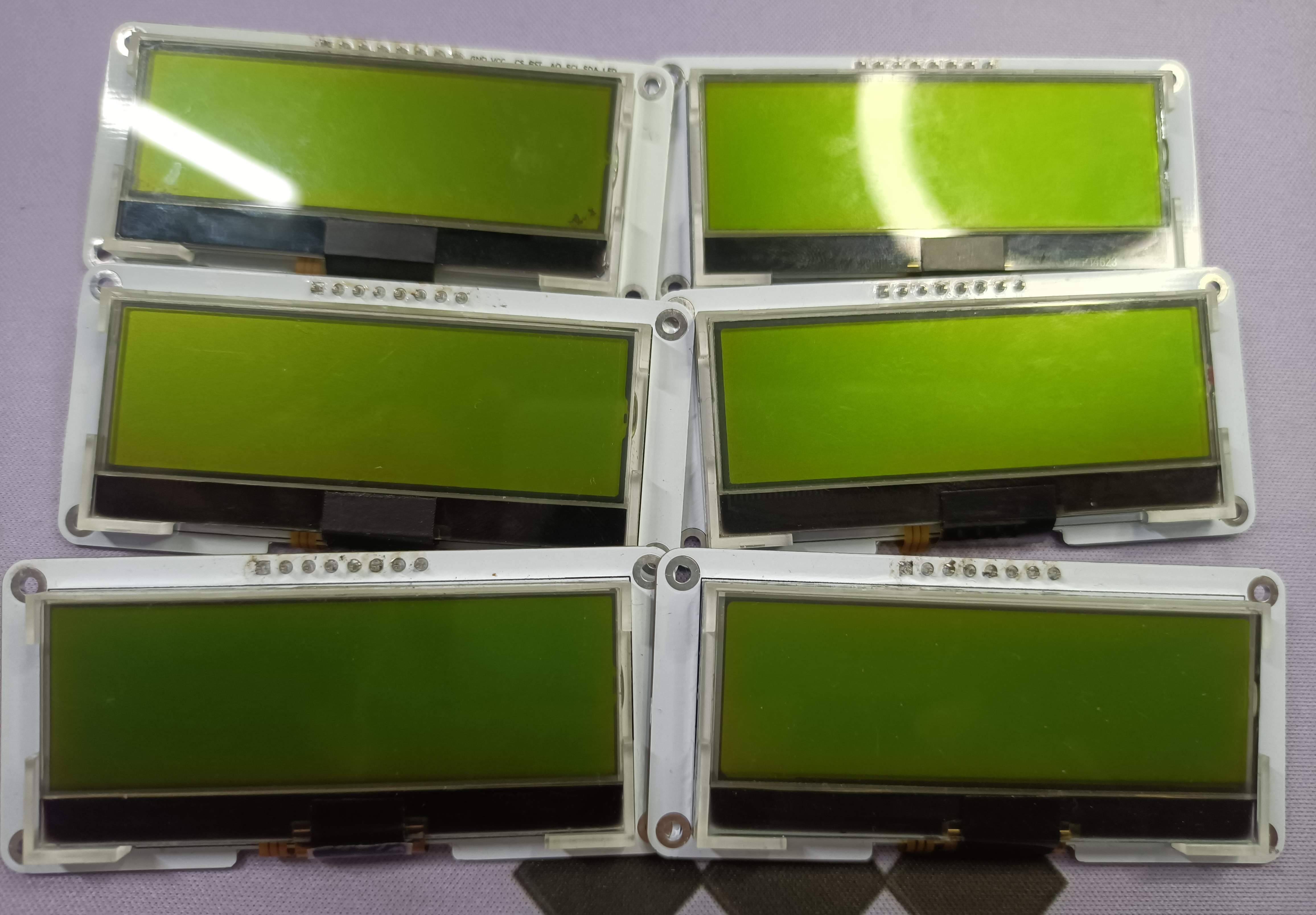

![IMG_20230328_192011.jpg] ![IMG_20230328_192047.jpg]
