PL2303HXD verification board

Overview

* This project is used to verify the solution verification board design of Lichuang Mall USB chip PL2303HXD ([Mall No. C50734](https://item.szlcsc.com/51745.html)).
* This design is a USB to serial port/UART module based on [PL2303HXD](https://item.szlcsc.com/51745.html "PL2303HXD ").

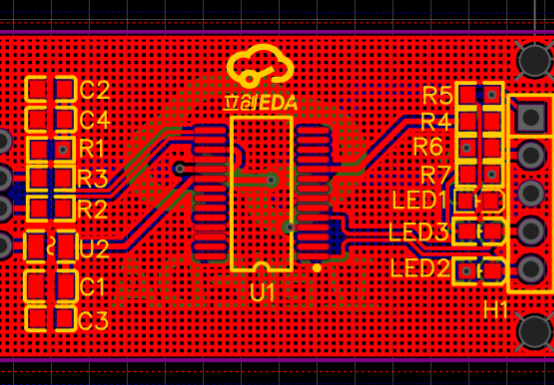

* The module of this design includes peripheral circuits necessary for chip operation such as USB and power pin headers, and leads out commonly used pins to facilitate developers to embed this solution into development.
* This module is compatible with PL2303TA and other SSOP-28_208mil packaged USB chips.

Note: Attached is the download of the driver and latest data sheet.
