2-4s triple charging adapter board

Overview

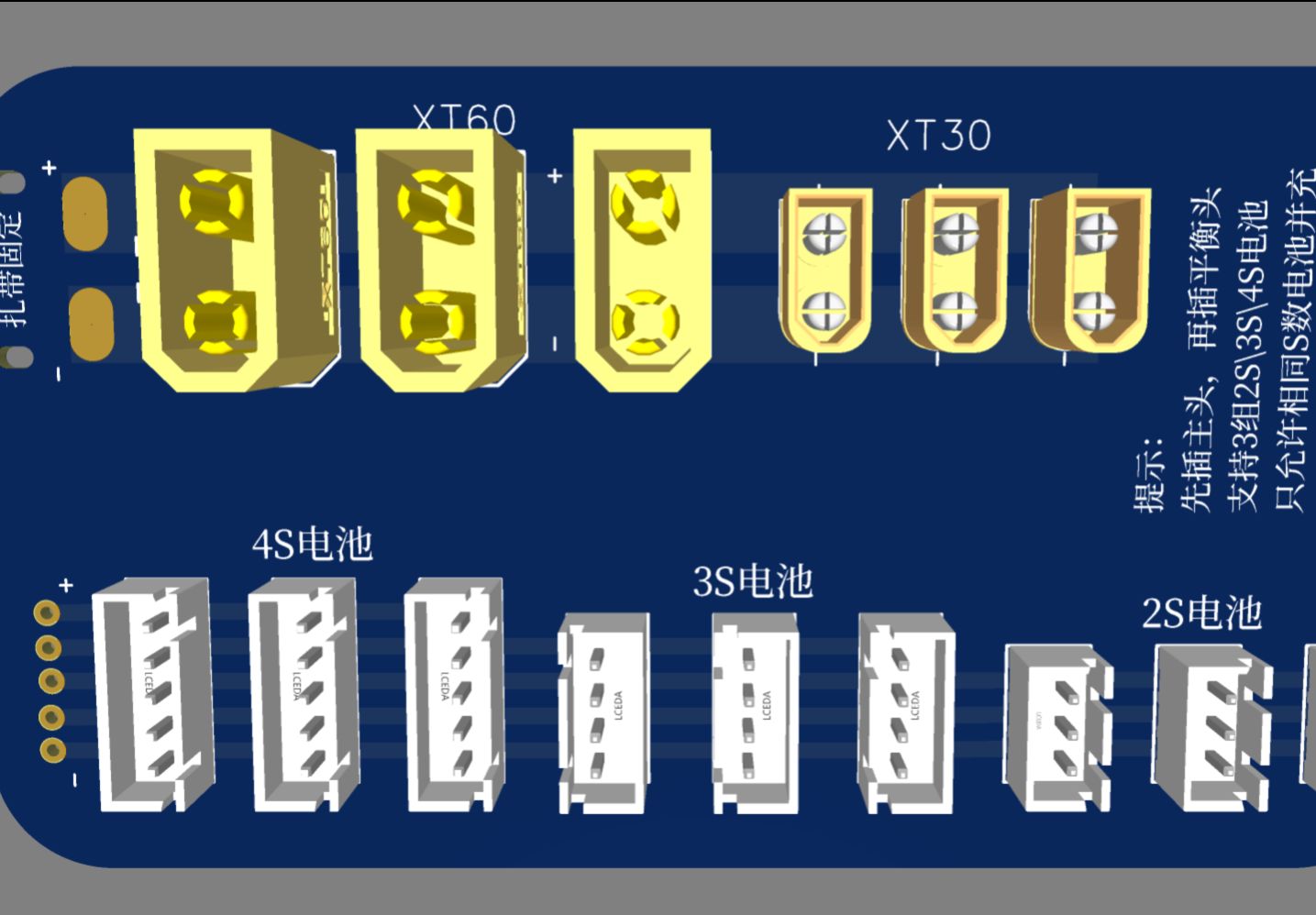

Model aircraft battery charging board and extension board can charge 2-3 identical batteries at the same time.
It is recommended to charge batteries with the same capacity and similar voltage together.
With 32V 8A fuse to achieve short circuit protection, it is recommended to use self-restoring type. Or replace it with a diode for reverse polarity protection.

Tips: Plug in the main connector first, then the balanced connector. Supports 3 sets of 2S3S4S batteries. Only the same S number of batteries are allowed to be charged together. The voltage difference of the single chip is <0.1V.
