JOjX1

ESP32-DisplayBoard

Overview

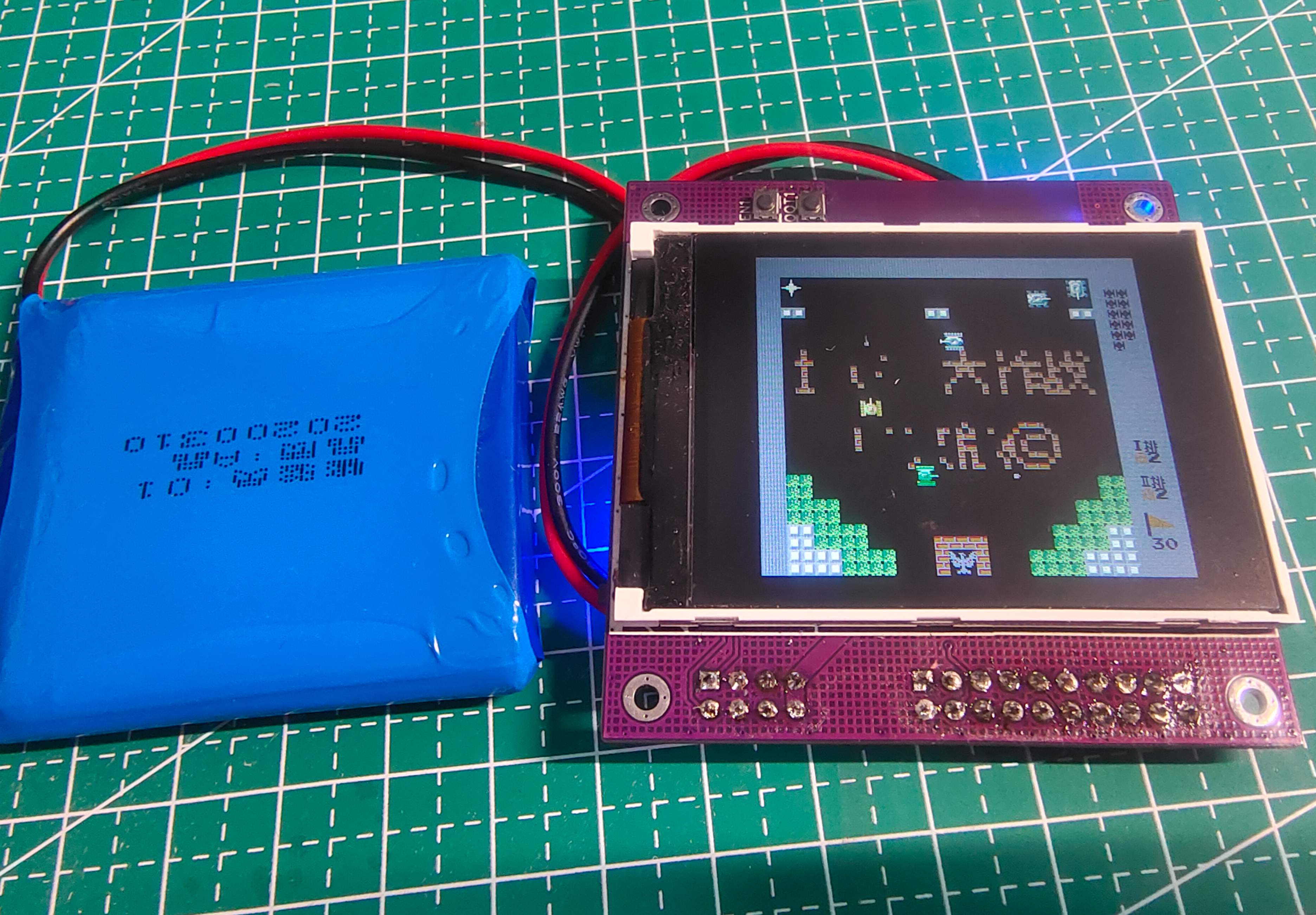

The Esp32 is used as the main control board, integrating the display, power management and download circuits. The remaining interfaces are expanded and can be used in conjunction with other function boards through plugging. For example, the key board unit can be plugged in to form a handheld machine or controller. The sampling unit forms an oscilloscope or power monitor, and the program can be directly edited to develop into a clock module, weather forecast or host information display panel, which is highly playable.
This project is displayed in the form of a handheld console. Reference project: https:/ /oshwhub.com/micespring/esp32-nesemu expansion key board project address: https://oshwhub.com/wangjiaxing/keyboard
