MAO_ESP press writer

Overview

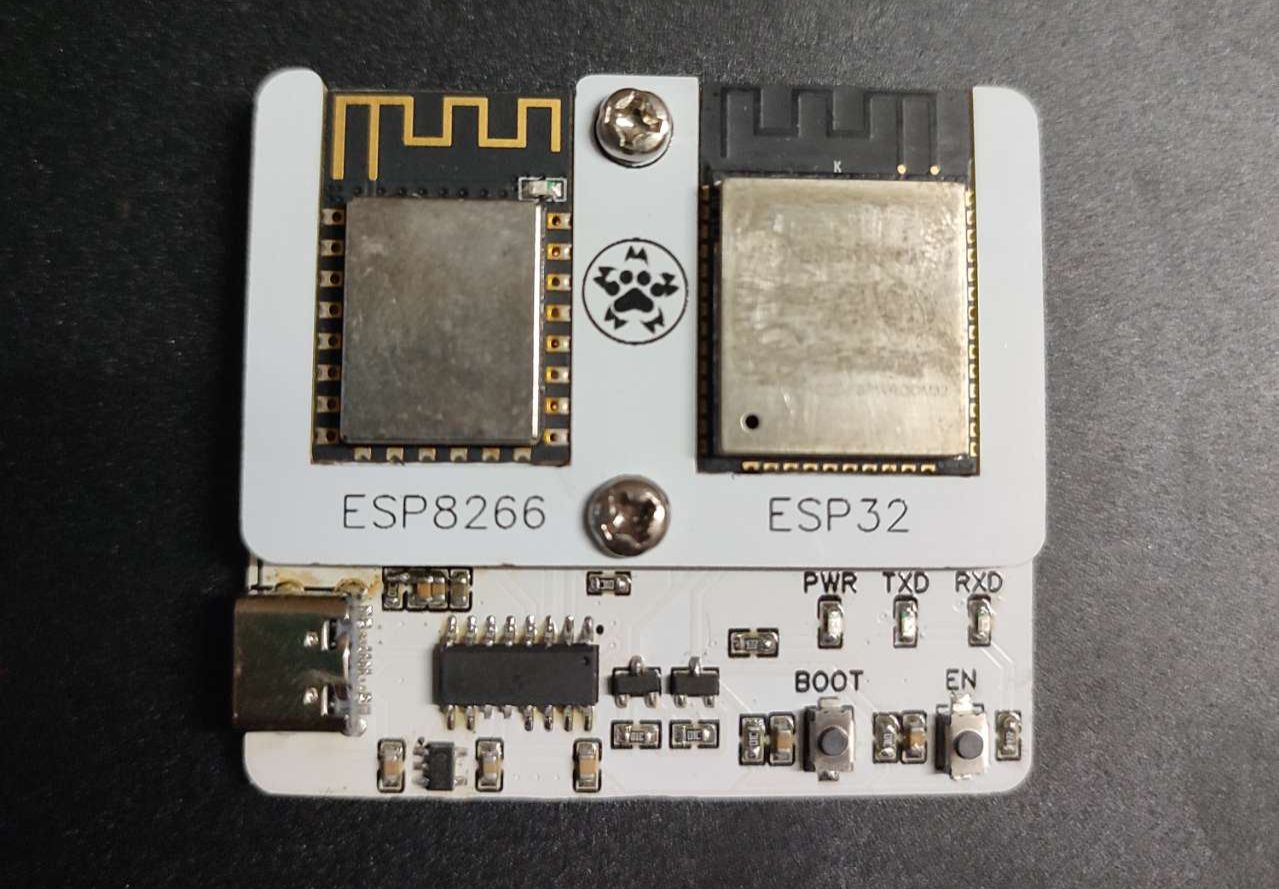

Mao_ESP press burning socket

Use the antenna base as a spring piece, and the outer frame fits perfectly. Just put it in and press it.
If the program is large and the burning is slow, it is recommended to use a clip to clamp the middle of the module.
Board thickness 1.6, M3*7 or above screws

The middle board is a positioning board, the bottom board is coated with solder paste, and the antenna base is placed on it. Place the teppanyaki plate and it will automatically align.

Click to join the group chat [ Ignorant ESP32 Chat Group ]
It is forbidden to delete the LOGO of this cat. Please strictly abide by the open source agreement.
What annoys the most are those guys who use Benmao’s works but delete the Benmao LOGO.

What's more, he deleted all the cat's information and added a label he developed himself.
