ADP1763_3A precision power module

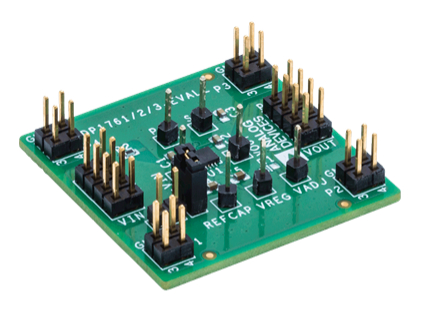

*The ADP1761, ADP1762, and ADP1763 Evaluation Boards are used to demonstrate the functionality of the ADP1761, ADP1762, and ADP1763 family of linear regulators.

Simple device measurements of line and load regulation, dropout voltage, and ground current can be made using a single voltage power supply, voltmeter, ammeter, and load resistor.

* Output current: 3 A (max)
* Low input voltage supply range
* VIN = 1.10 V to 1.98 V, no external bias supply required
* Fixed output voltage range: VOUT_FIXED = 0.9 V to 1.5 V
* Adjustable output voltage range: VOUT_ADJ = 0.5 V to 1.5 V
* Ultra-low noise: 2 μV rms, 100 Hz to 100 kHz
* Noise spectral density
* 4 nV/√Hz (10 kHz)
* 3 nV/√Hz (100 kHz)
* Low dropout: 95 mV (typ, 3 A load)
* Operating supply current: 4.5 mA (typ, no load)


* Fixed output voltage accuracy over line, load and temperature: ±1.5%
* Excellent power supply rejection ratio (PSRR) performance
* 59 dB typical (10 kHz, 3 A load)
* 43 dB typical (100 kHz, 3 A load)
* Excellent load/line transient response
* Soft-start reduces inrush current
* Targeted at small 10 μF Optimized with ceramic capacitors
* Current limit and thermal overload protection
* Power good indication
* Precision enable
* 16-pin, 3 mm × 3 mm LFCSP package
* ADP1763 features dropout voltage as low as 95 mV (typ, 3 A load) , operating with small margins while maintaining regulation and providing greater efficiency.

The ADP1763 is optimized for stable operation with a small 10 μF ceramic output capacitor. The ADP1763 has the best transient response performance and occupies an extremely small circuit board area.

The ADP1763 offers fixed output voltages from 0.9 V to 1.5 V. The output in adjustable output mode can be programmed from 0.5 V to 1.5 V with an external resistor connected between VADJ and ground.
