ST7789 parallel screen for smart car competition

Overview

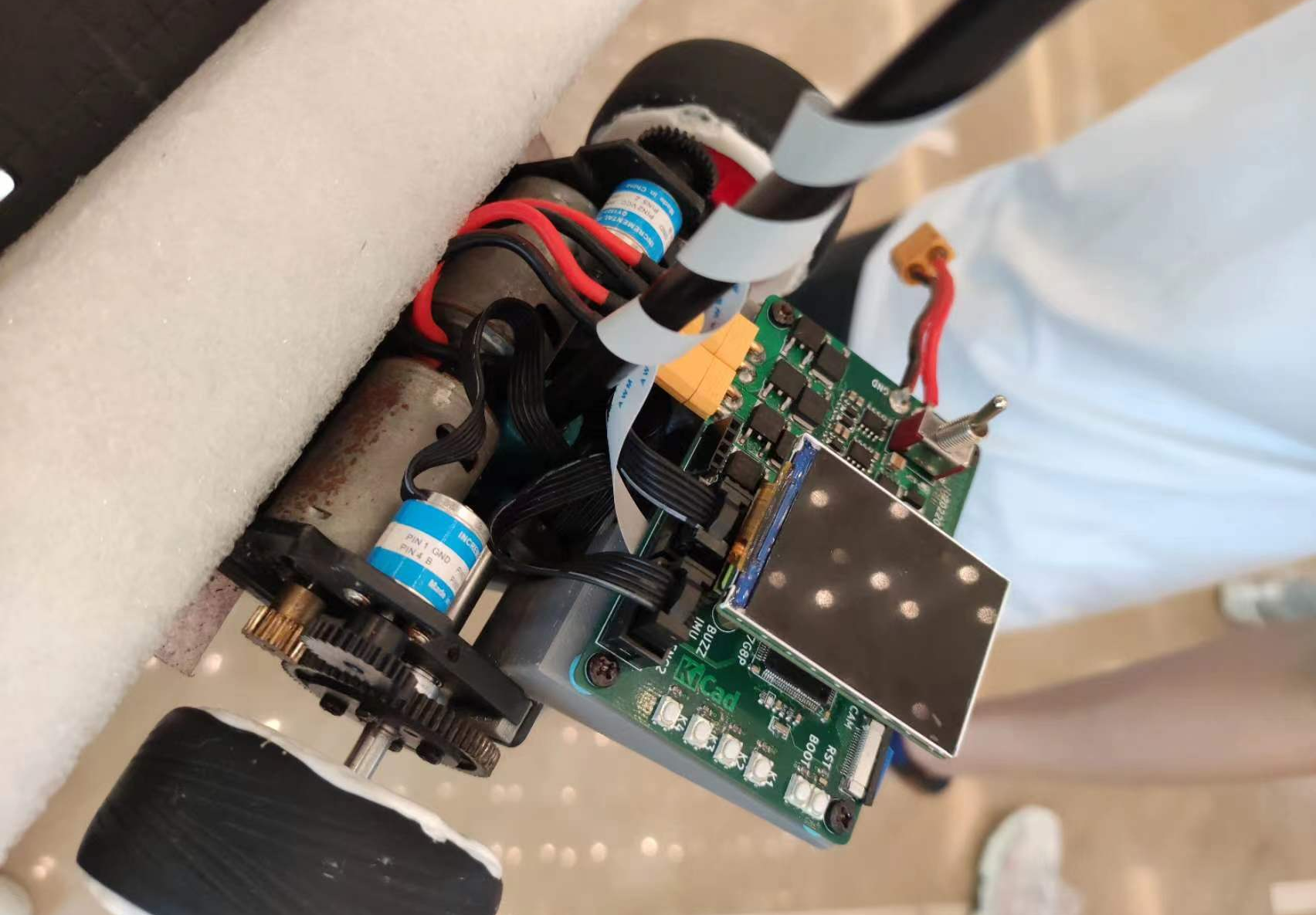

The ST7789 parallel port screen used for smart car competition is compatible with Moufei Technology. I forgot that the screen is from Moubao. If you lay a board by yourself according to the wiring sequence, all 22P ST7789 screens should be usable!
1. [Reference screen link] (https ://item.taobao.com/item.htm?id=672216030131)
2. [Refer to fpc seat link pull up 22p](https://detail.tmall.com/item.htm?id=550663619787&skuId=3521691491019 )
---

Note that the seat is connected from the top. I have only tested the use of these two together.
If you have any other questions, please contact me at E-mail: zenchrer@qq.com
~~The one I bought is the top-connected FPC interface+ Connect the screen on a certain treasure~~
