usb_to_ttl_ch340c_esp32_DTR

Overview

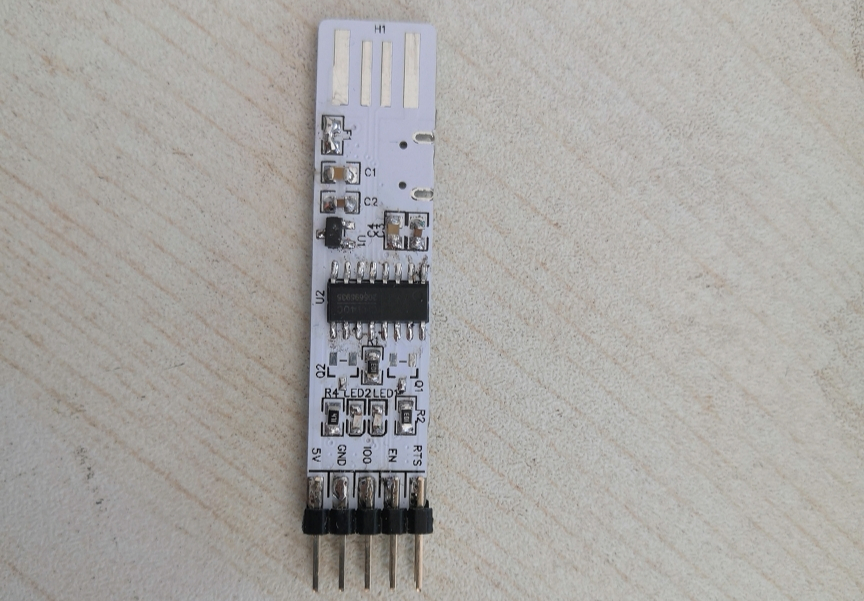

USB to ttl, using ch340c, built-in crystal oscillator, external DTR and RTS, can be used as 430 downloader, converted to EN and IO0, can be used as esp8266 and esp32 downloader.
