MPC5775B BMS and VCU Reference Design

RDVCU5775EVM

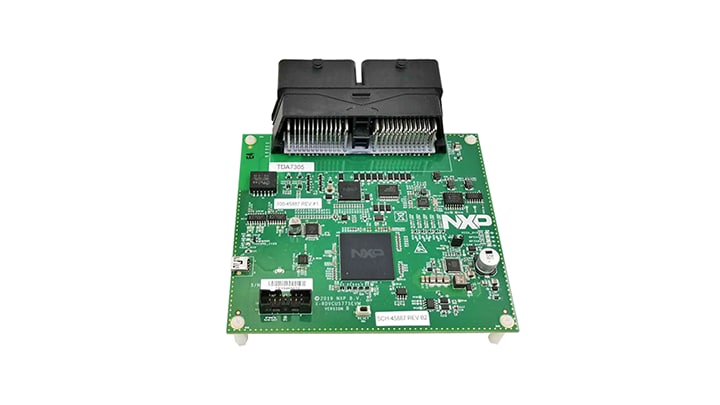

Overview

The RDVCU5775EVM is an out-of-the-box, proof-of-concept and cost-effective reference design designed to integrate battery management system (BMS) and vehicle control unit (VCU) high-voltage functions with powertrain connectivity directly to the domain controller, Supports ISO 26262 ASIL D automotive applications.
RDVCU5775EVM is based on the 32-bit Power Architecture® MPC5775B MCU, FS6523 functional safety power SBC and MC33664 high-speed conversion physical layer (TPL) network. It supports MC3377x battery controller EVB daisy chain and CD1030 33-channel multi-switch detection interface (MSDI) with programmable current.
RDVCU5775EVM Reference Design – Introduction

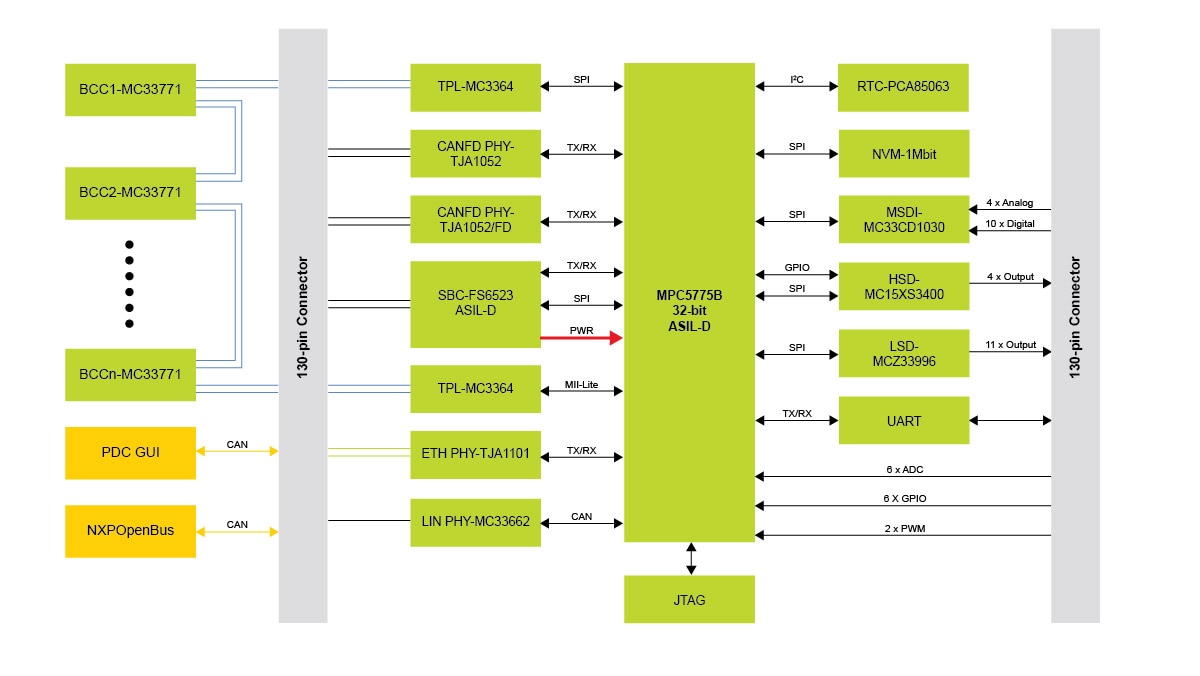

Blockdiagram

Design Files

Documentation
