DI-177 - 9 W, high ambient temperature power supply for oven control

DI-177 - 9 W, High Ambient Temperature Supply for Oven Control

Overview

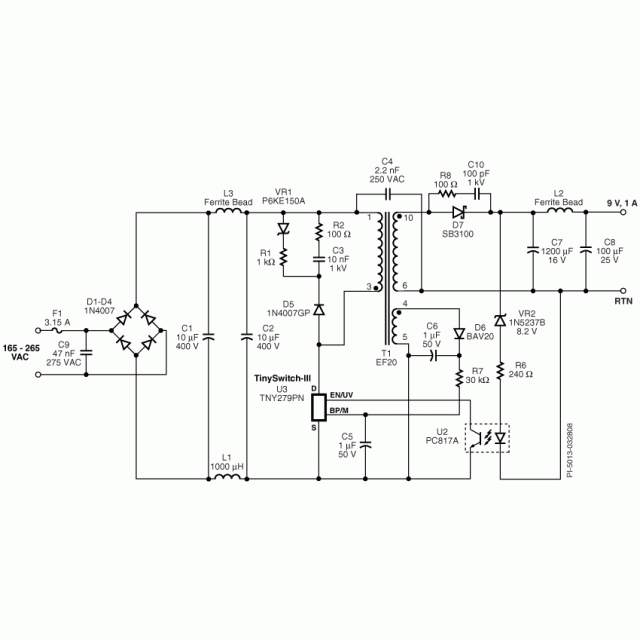

Design Highlights High ambient temperature operation (TAMB = 105 °C) High energy efficiency Meets CEC 2008 requirements for active mode efficiency (82% vs. 68.8% requirement) No-load input power <150 mW at 265 VAC Extended protection features Hysteretic over-temperature shutdown The protection auto-restart function provides output short-circuit protection that meets EN55022B limits with a margin >8 dBμ

Blockdiagram

Design Files

di177
