DER-543 - 18.4 W non-dimmable, non-isolated boost LED driver

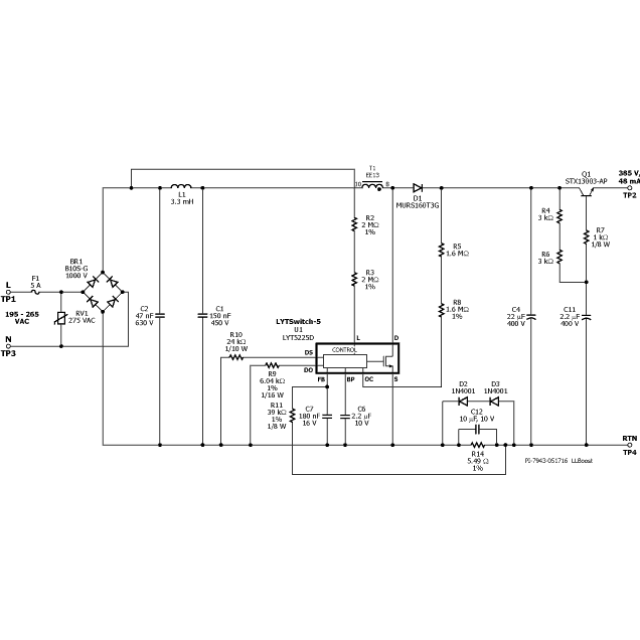

The engineering report describes a non-dimmable boost LED driver that drives 385 V LED strings at 48 mA over an input voltage range of 195 VAC to 265 VAC. This LED driver uses LYT5225D in the LYTSwitch-5 series of devices. LYTSwitch-5 is a non-dimmable LED driver IC with single-stage PFC functionality and precise LED current control. LYTswitch-5 integrates a high voltage power MOSFET and a discontinuous mode, variable frequency, variable on-time controller. The controller also offers fast (cycle-by-cycle) current limiting, input and output OVP, and advanced thermal management circuitry. The DER-543 provides a precise 48 mA output current and very low ripple (low % flicker) at 385 V LED output. The main design goals are high efficiency, accurate constant current regulation, low component count and low output ripple current. This document contains power supply specifications, schematics, bill of materials, transformer documentation, printed circuit layout, design spreadsheet, and performance data.
