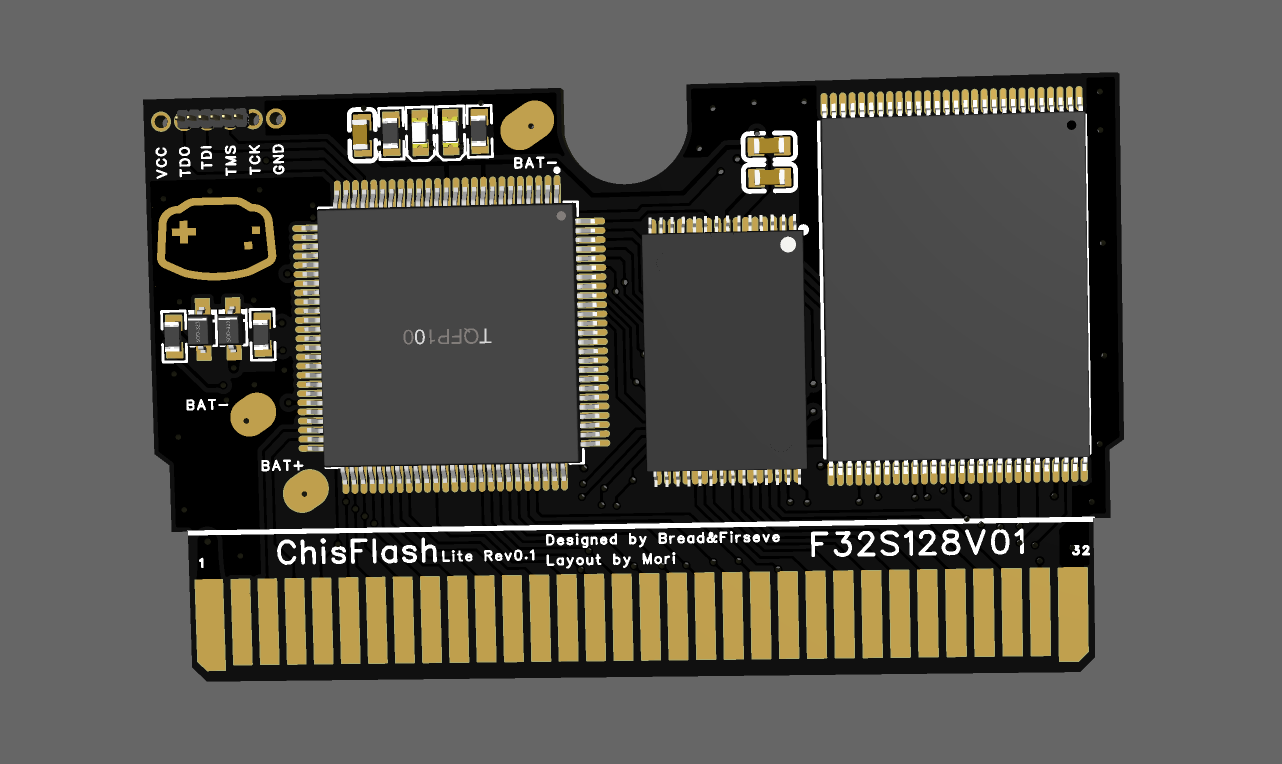

ChisFlash V0.1 Youth Edition Open Source GBA Flashcart

The functionality is the same as ChisFlashV1.0.
ChisFlash V0.1 (Pichu) uses 256Mbit Flash and 1Mbit SRAM, compatible with 99% of GBA games, and supports NDS and GBcartRW burning.
Important notes:
When making the PCB, ensure the thickness is 0.8mm.
The FM28V100-TG in the BOM should be the same packaged SRAM. Specific selection will be updated in real-time within the group.
Currently in beta testing, the firmware needs to be obtained from the QQ group (chisflashlitx_xxx.pof). After beta testing is complete, the firmware code will be open-sourced on GitHub.
Learn more at
the GitHub project address, which will include firmware source code and GBA cartridge principle analysis (to be uploaded): https://github.com/ChisBread/ChisFlash . Join
the QQ group 771688226
for project progress, self-made tutorials, material pitfall avoidance, black gold PCB material card group buying (voluntary group buying, non-profit), and finished product exchange and display.

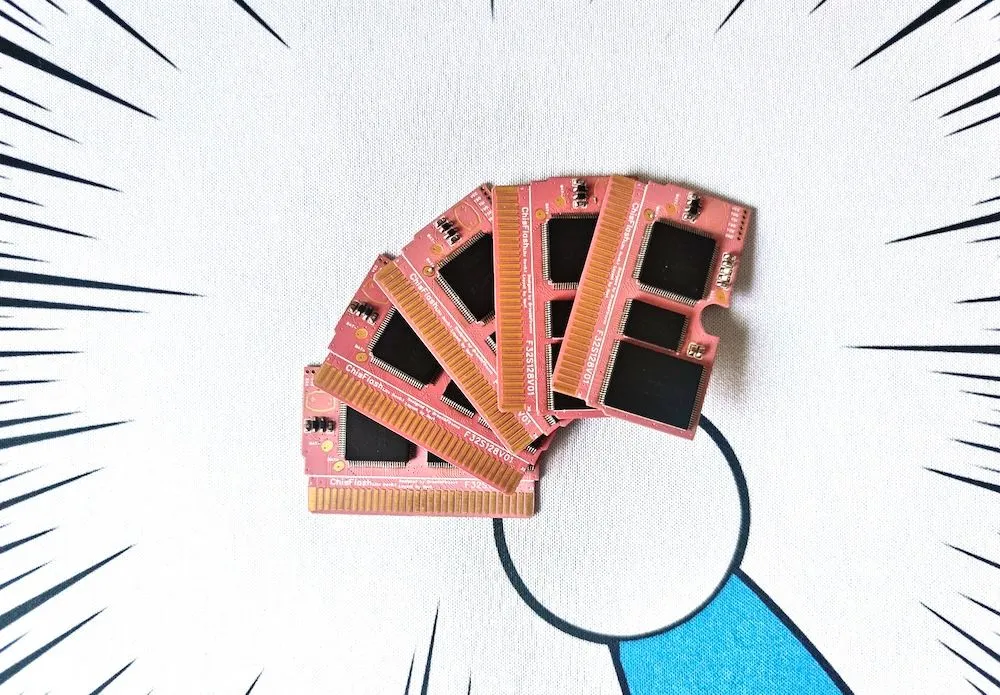

Product showcase
video demonstration
[[ChisFlash] Can you use a 2u immersive gold-plated card within a budget of 30 yuan? The first batch of DIY all-purpose GBA flashcarts has already left - Bilibili] https://b23.tv/K90WHhc

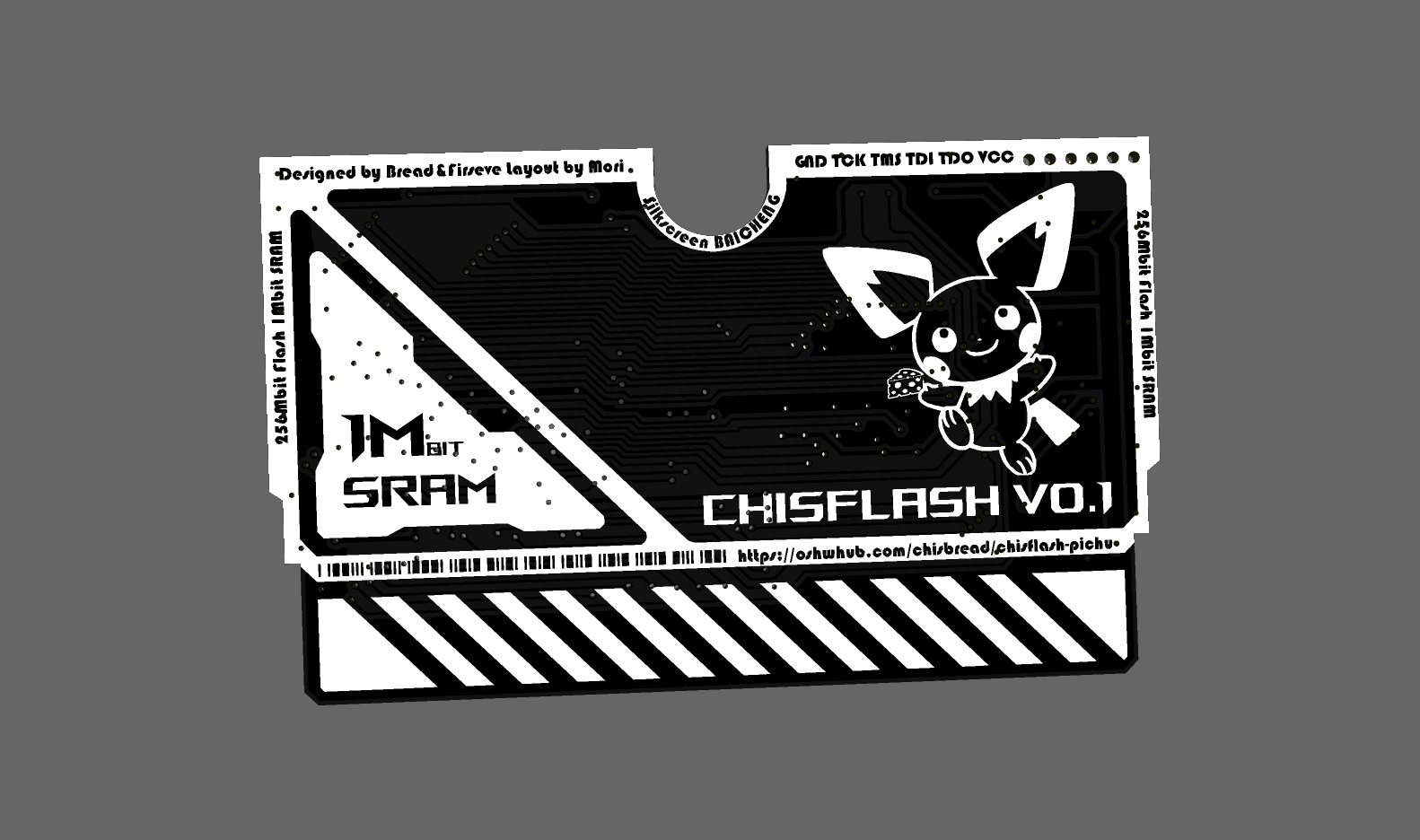

The card back features a Pichu silkscreen print.

Thanks to
@firseve for the mature SRAM circuit design and selection advice,
@mori for the excellent schematic design and layout,
@白橙's silkscreen design
, and all the players who selflessly contributed to the GBA. Let's preserve our childhood memories forever on the internet!
