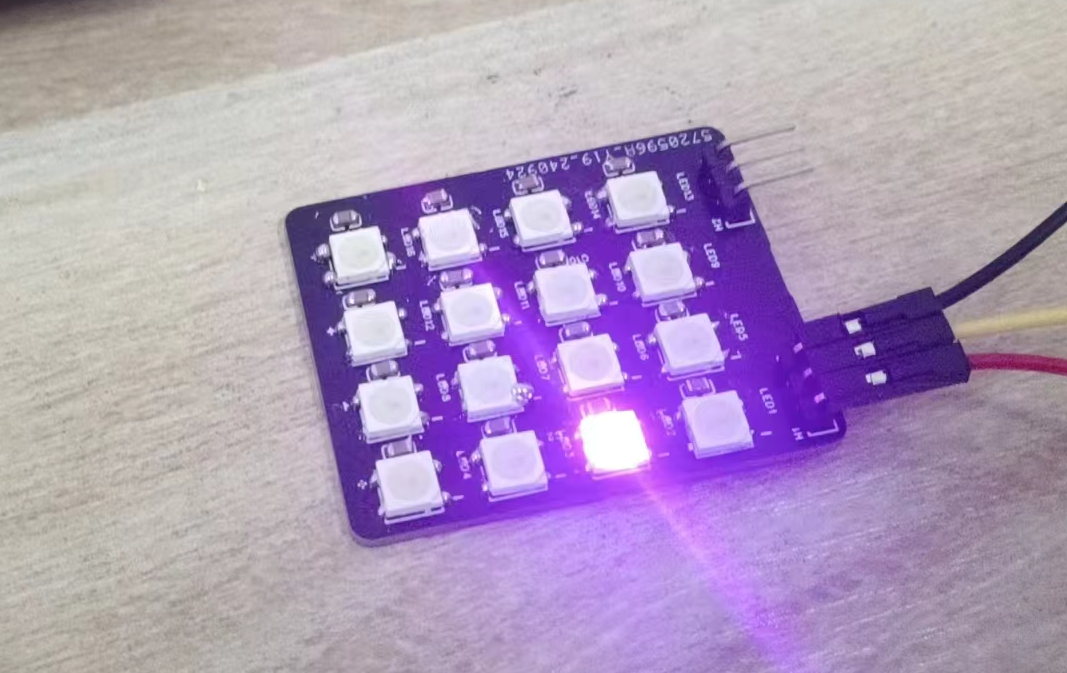

WS2812 Dot Matrix Light

Overview

I. Design Rationale:
Considering this is a beginner's first project, the difficulty needed to be limited; therefore, this 2812 dot matrix light was designed.

II. Wiring Design and Arrangement:
Double-layer wiring was used, with the 2812 colored lights arranged sequentially from left to right.

III. Physical Verification
Video: See attachment.

cde21913d849d78a0cb8c021097d8cf9.mp4

PDF_WS2812 Dot Matrix Light.zip

Altium_WS2812 dot matrix light.zip

PADS_WS2812 Dot Matrix Light.zip

BOM_WS2812 Dot Matrix Light.xlsx

91779

WS2812 Pet Light-Up Collar

Cost: Air001 chip 0.01; WS2812 LED beads 1 yuan each; battery 2 yuan; other components approximately 0.3 yuan each;

Video Link:
Bilibili Video -- Function Demonstration and
Project Introduction
This design primarily utilizes the Air001 chip and WS2812 LED beads to create a pet light-up collar. It features a single button; long press to power on; single click to switch modes until power off; long press for stepless dimming while powered on; a flashing light indicates the maximum brightness.
**Cost:** Air001 chip 0.01; 12 WS2812 LED beads 1 yuan; battery 2 yuan; other components approximately 0.3 yuan; **

Lighting Effects:
** Timer Effect: 4 LEDs illuminate in a lap (Green: 30 minutes; Blue: 30-60 minutes; Yellow: 60-90 minutes; Red: 90 minutes and above)

Energy Saving Effect: Single LED illuminates in a lap (Green: 30 minutes; Blue: 30-60 minutes; Yellow: 60-90 minutes; Red: 90 minutes and above)

Fast Flash Effect:

Bounce Effect: Seven-color

Power-off Effect: 12 LEDs turn off sequentially
...

WS2812 Pet Light-Up Collar.mp4

PDF_WS2812 Pet Light-Up Collar.zip

Altium_WS2812 pet light-up collar.zip

PADS_WS2812 Pet Light-Up Collar.zip

91780

electronic

Design Files
