BD3QHR-RDA5087FP Radio

Overview

The RDA5087FP radio's
external antenna doesn't work!!! I haven't tested Type-C, so I don't know if it will work!!! Don't copy my work, just copy the original author's!!! (Copying cost is 130 RMB x 5 (including 30 RMB x 2 for the 3D shell))
I. Declaration:

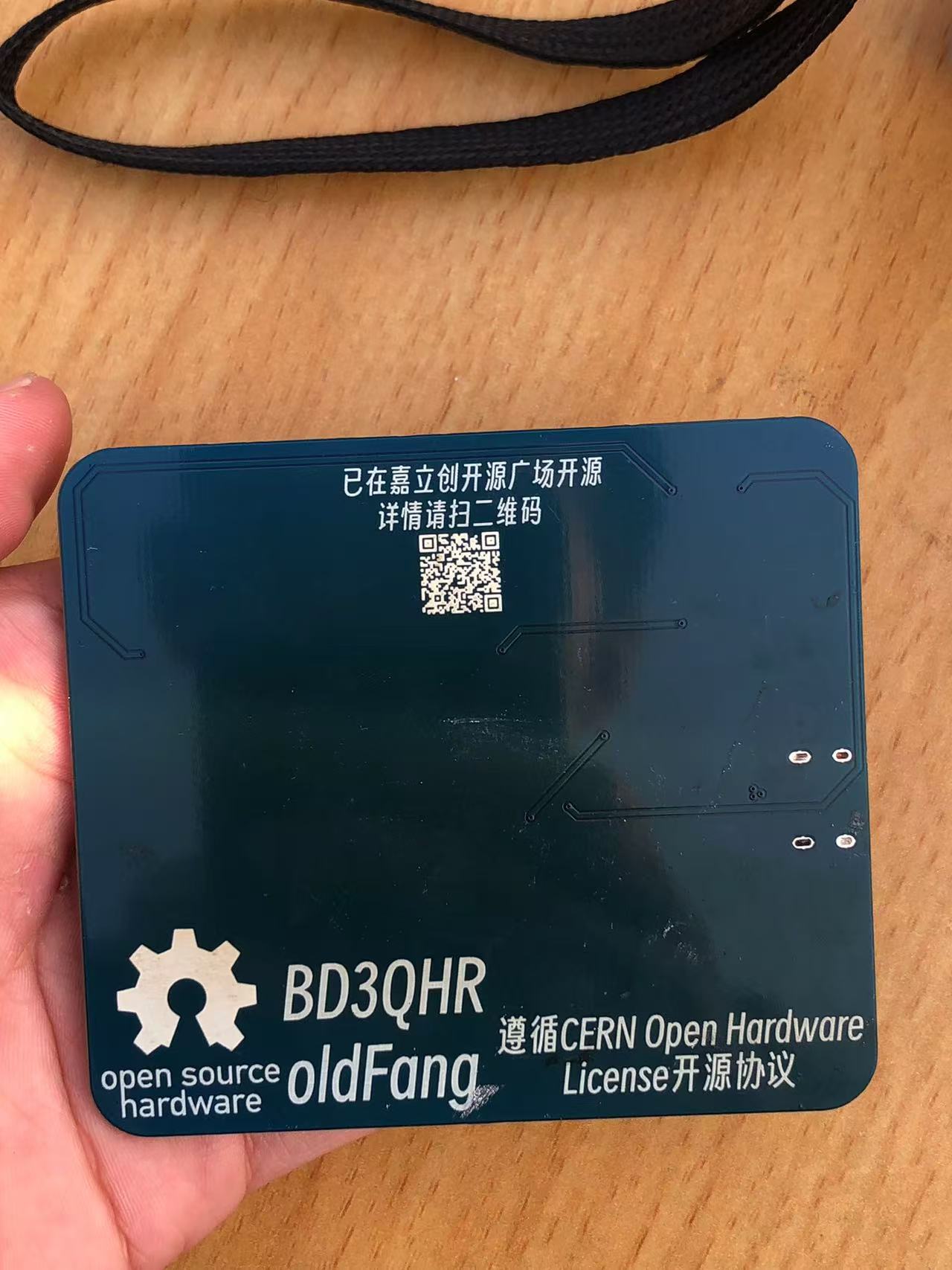

Based on an open-source project, following the same CERN Open Hardware License as the original project.
Original author's homepage: https://oshwhub.com/und3f1ned/works
Original project link: https://oshwhub.com/und3f1ned/dian-xie-zha

II. Project components

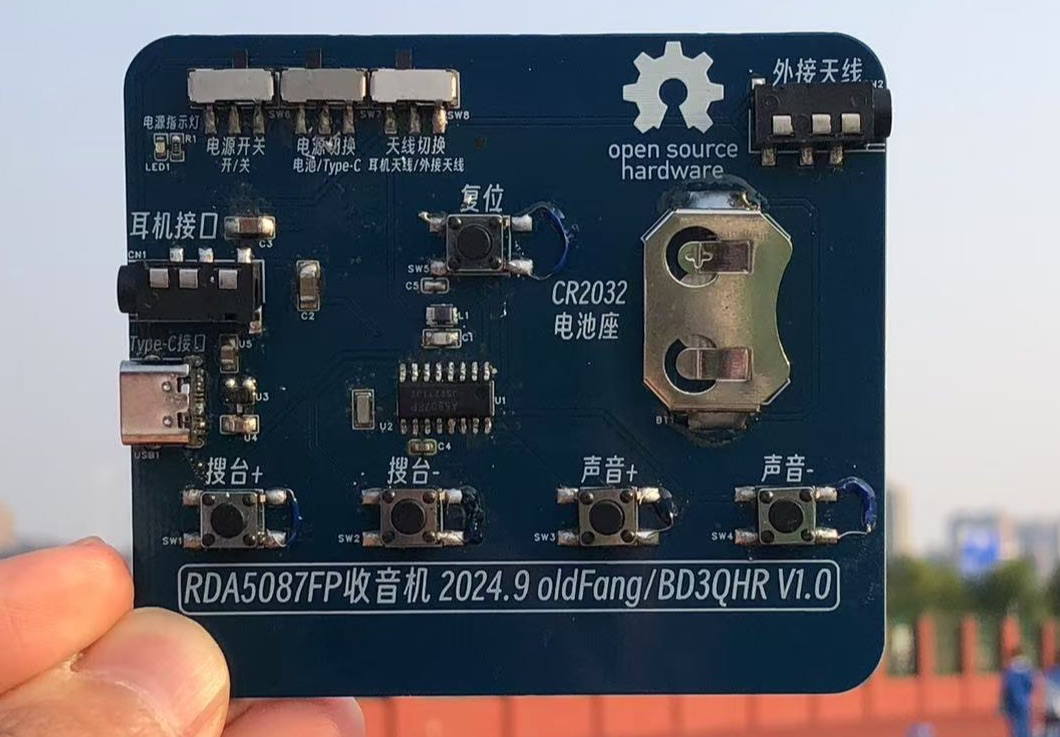

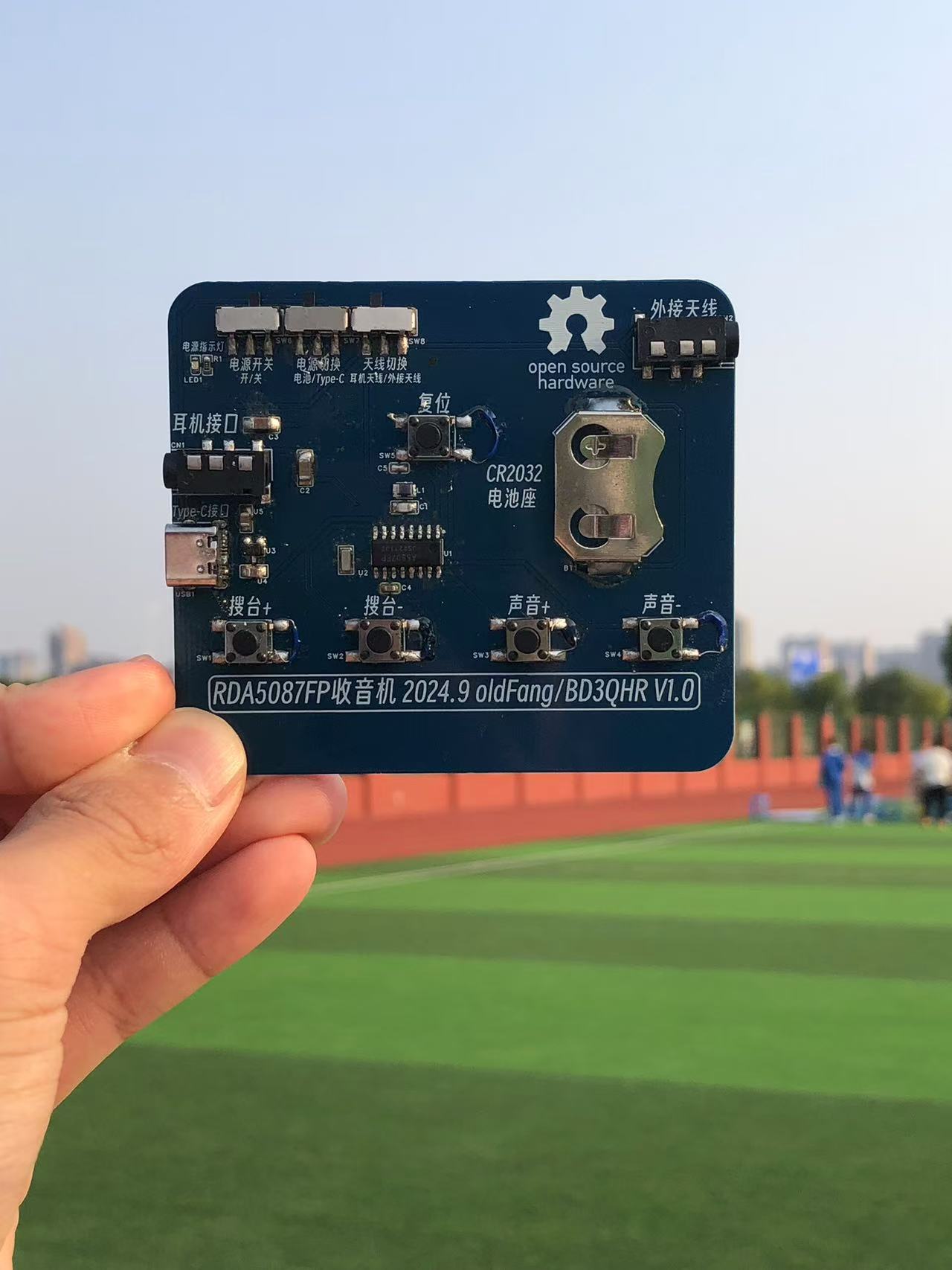

: RDA5087FP chips (50MHz to 115MHz radio) purchased from Taobao, around 1.1 RMB each.
The external antenna, although unusable, was also purchased from Taobao.

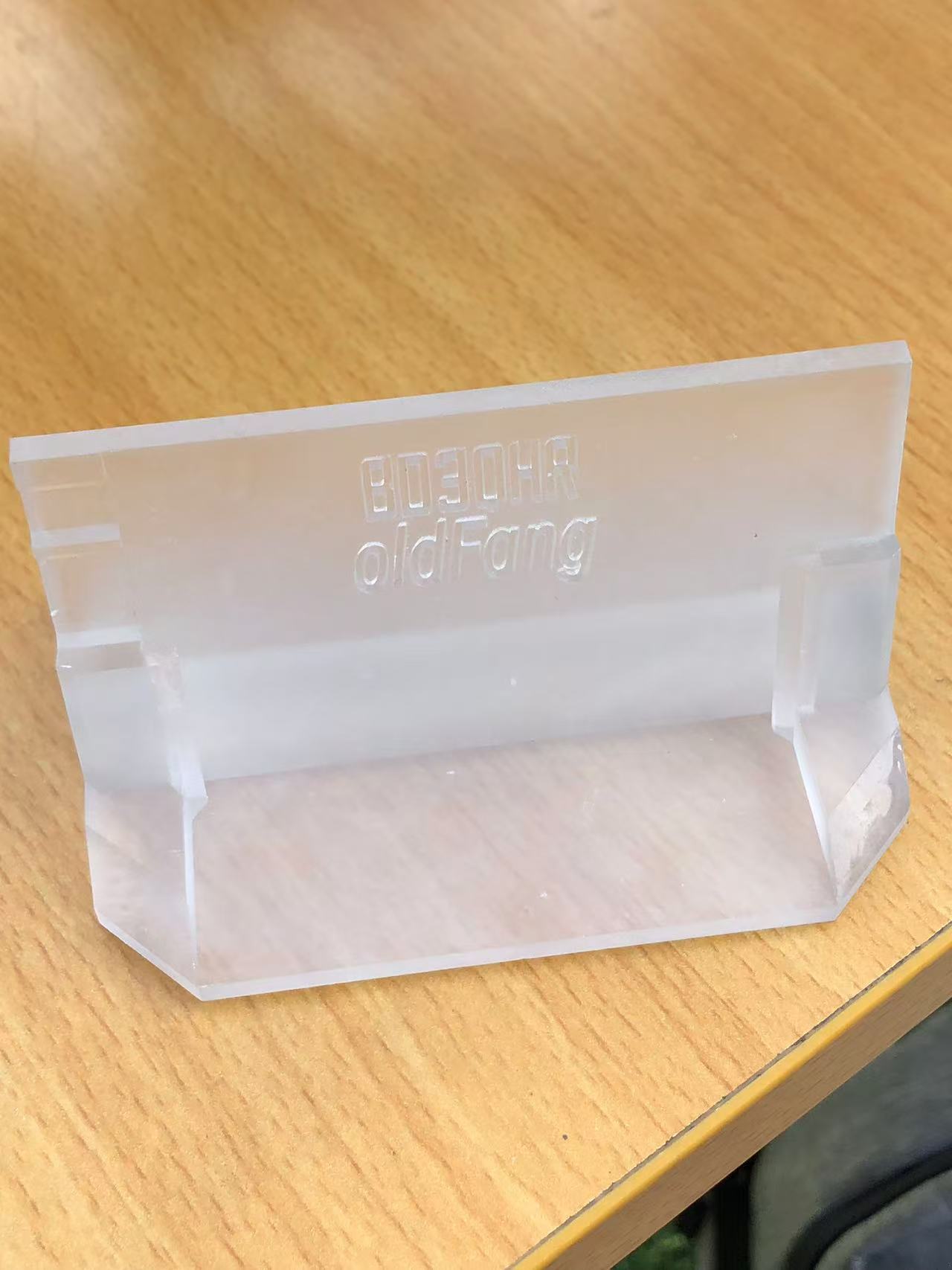

The 3D shell was printed by JLCPCB (file below).
Other components came from LCPCB Mall and JLCPCB PCB manufacturing.
III. Project shortcomings:
The external antenna doesn't work... I haven't tested Type-C, so I don't know if it will work... The first version of the button circuit design was wrong, the wires were flying...
