ESP32 HUB75E Controller

Overview

This document

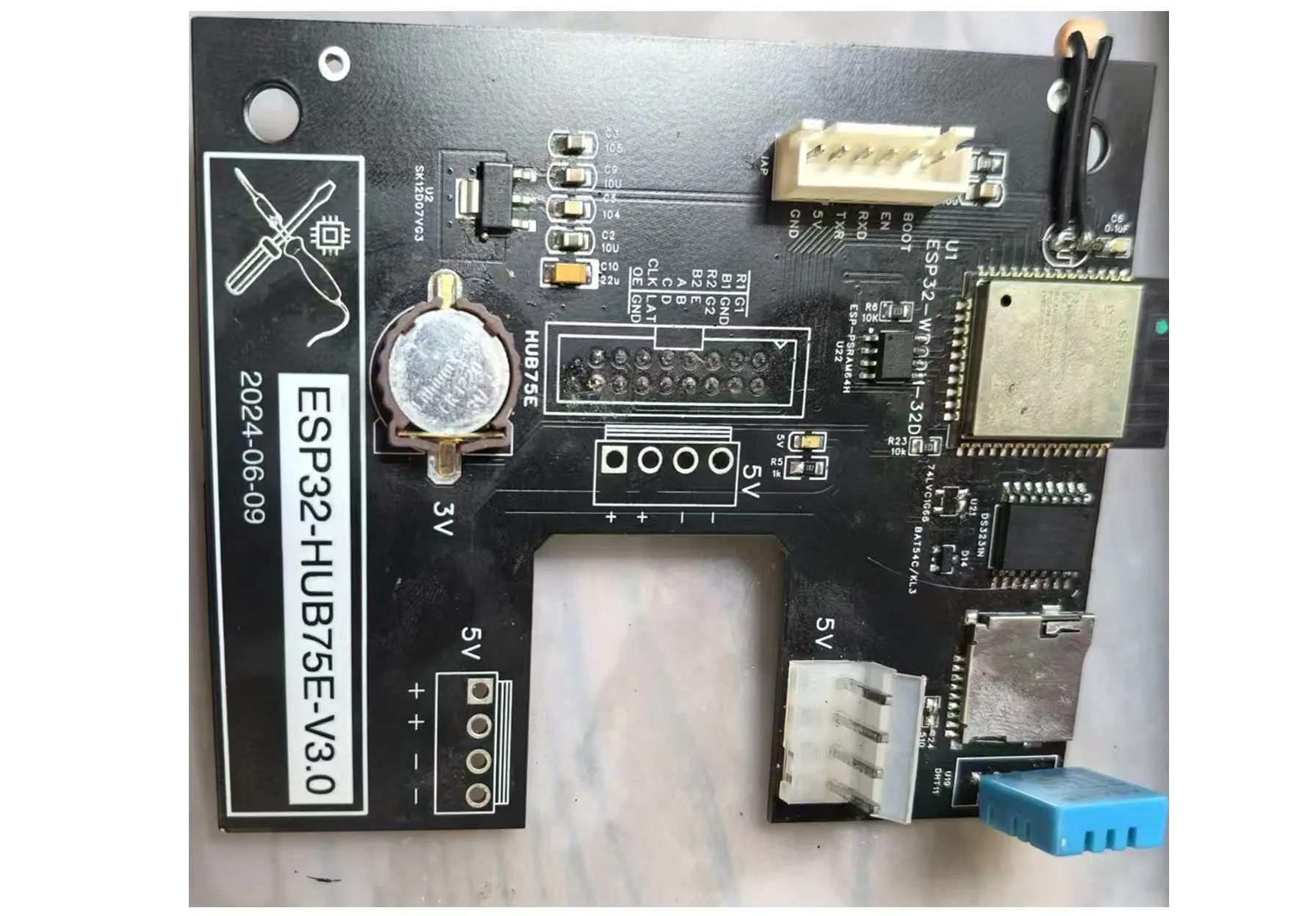

describes the design of the ESP32-S3 HUB75E controller
, a HUB75 LED panel controller designed using the ESP32 module.
It features 8MB of PSRAM for a richer interface, an integrated DS3231 clock chip, DHT11, TF card, and photoresistor detection. Notes: The HUB75E uses a 2.54-16P dual-row female connector, which needs to be soldered to the back.
