140W Single USB-C Port Bidirectional Fast Charging_IP2366

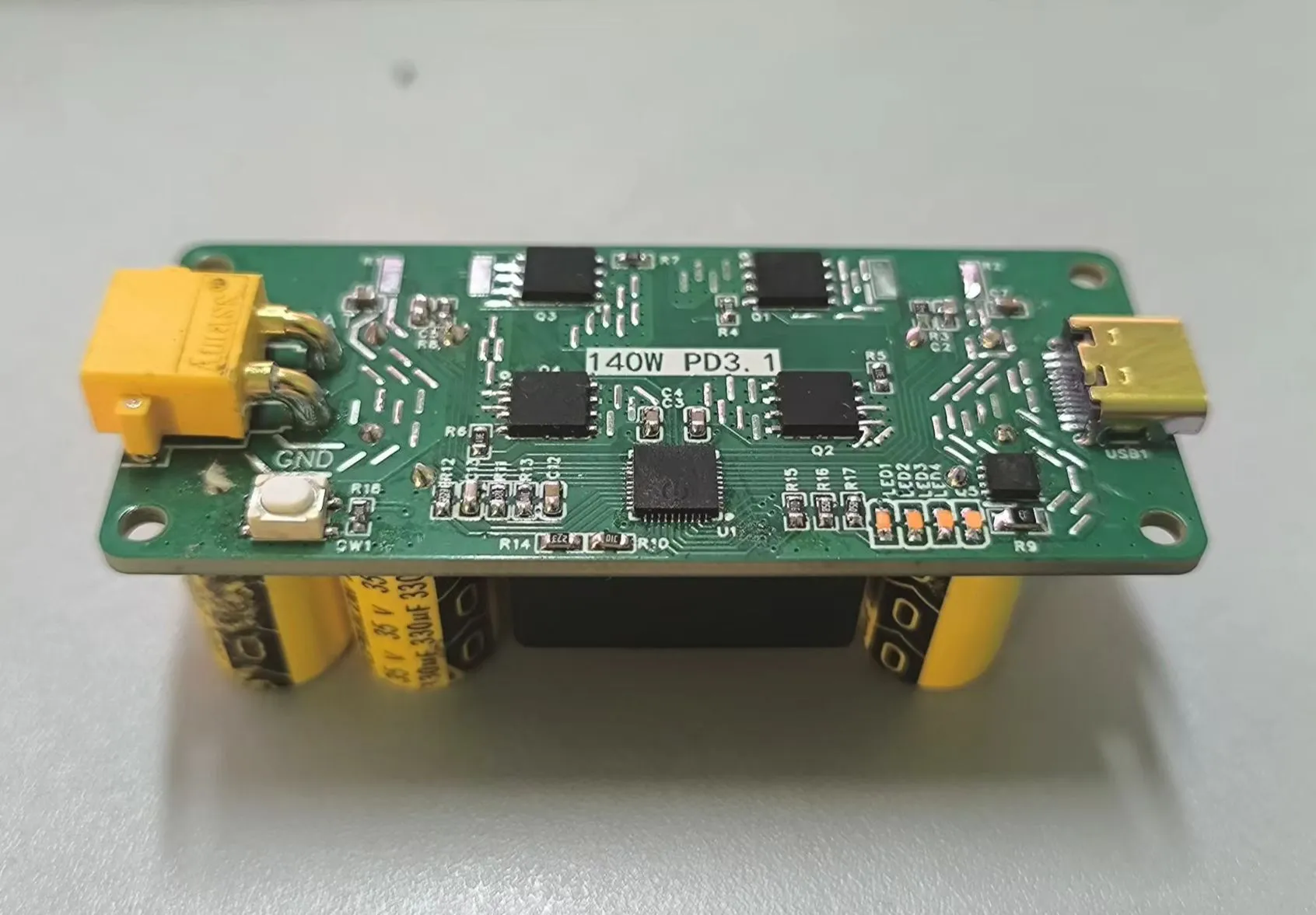

Overview

Note that the XT30 interface used in this project is a reverse definition. Please carefully confirm before inserting the battery!
The configuration uses a 5S battery with a power output of 140W. The default power receiving
MOSFET should not be the TPH1R403NL shown in the schematic. It generates significant heat during 65W charging;

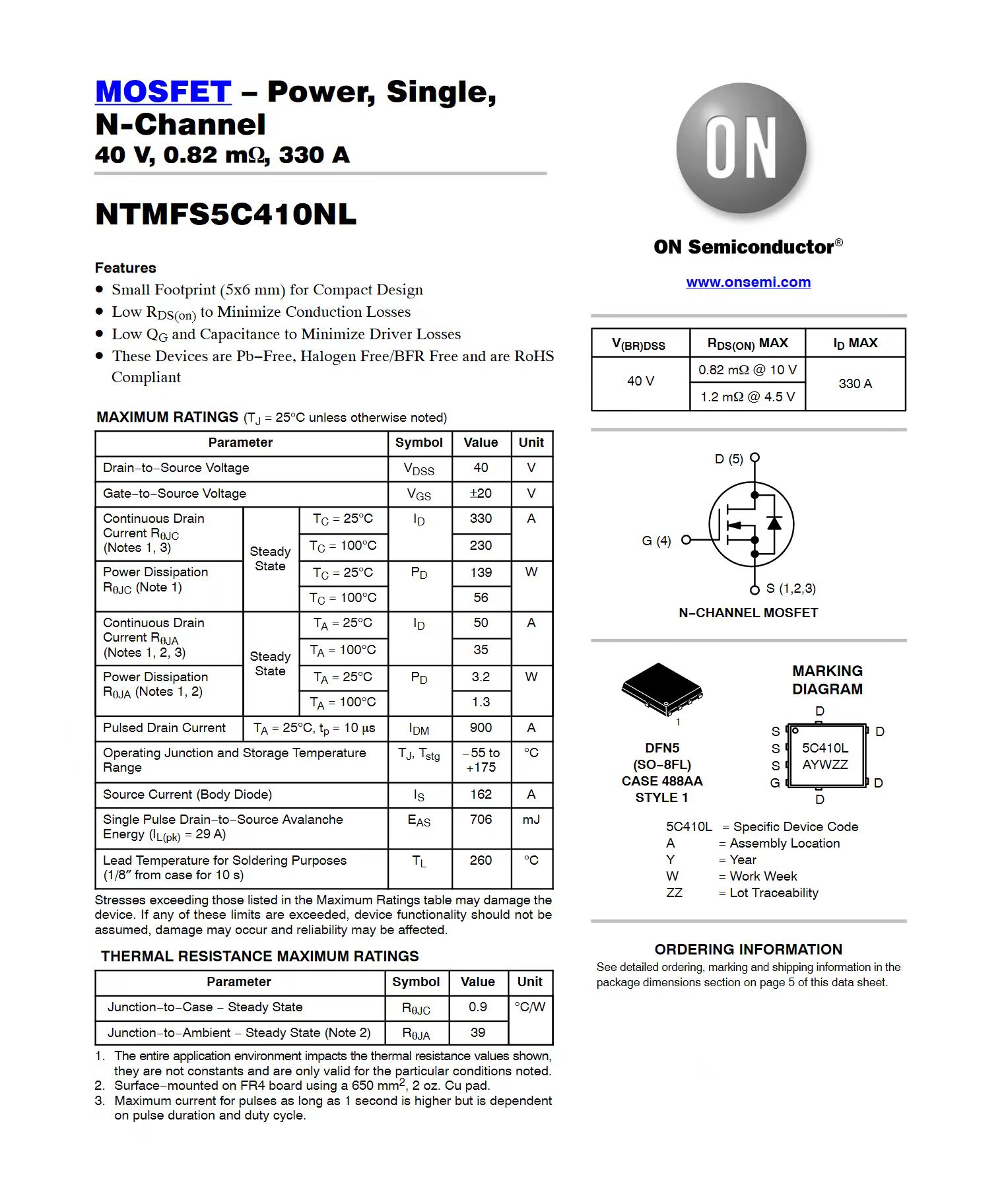

the ON Semiconductor NTMFS5C410NL is recommended. At 65W charging/discharging, a heatsink is not required. At 100W charging, the upper MOSFET temperature rises to over 80℃ after 3 minutes. At 140W charging, it lasted only 1 minute before short-circuiting and burning out the heatsink.

PS: If abnormal noises suddenly occur during high-power discharge (100W+), immediately unplug the battery connector (the lower MOSFET will have already failed; continuing to discharge will damage an IP2366 chip).

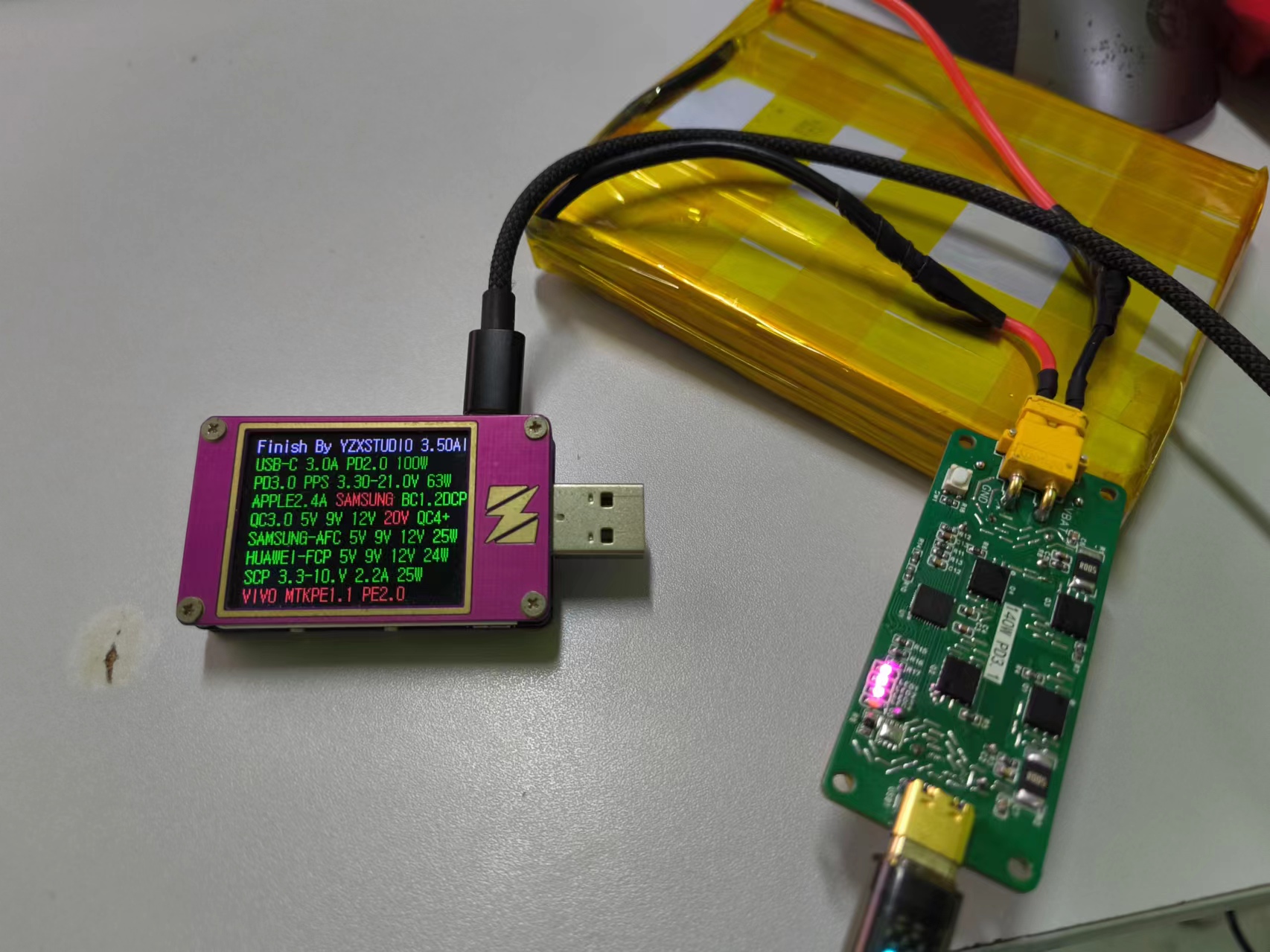

100W CC line discharge protocol (this meter cannot measure high-voltage 28V PD3.1). For

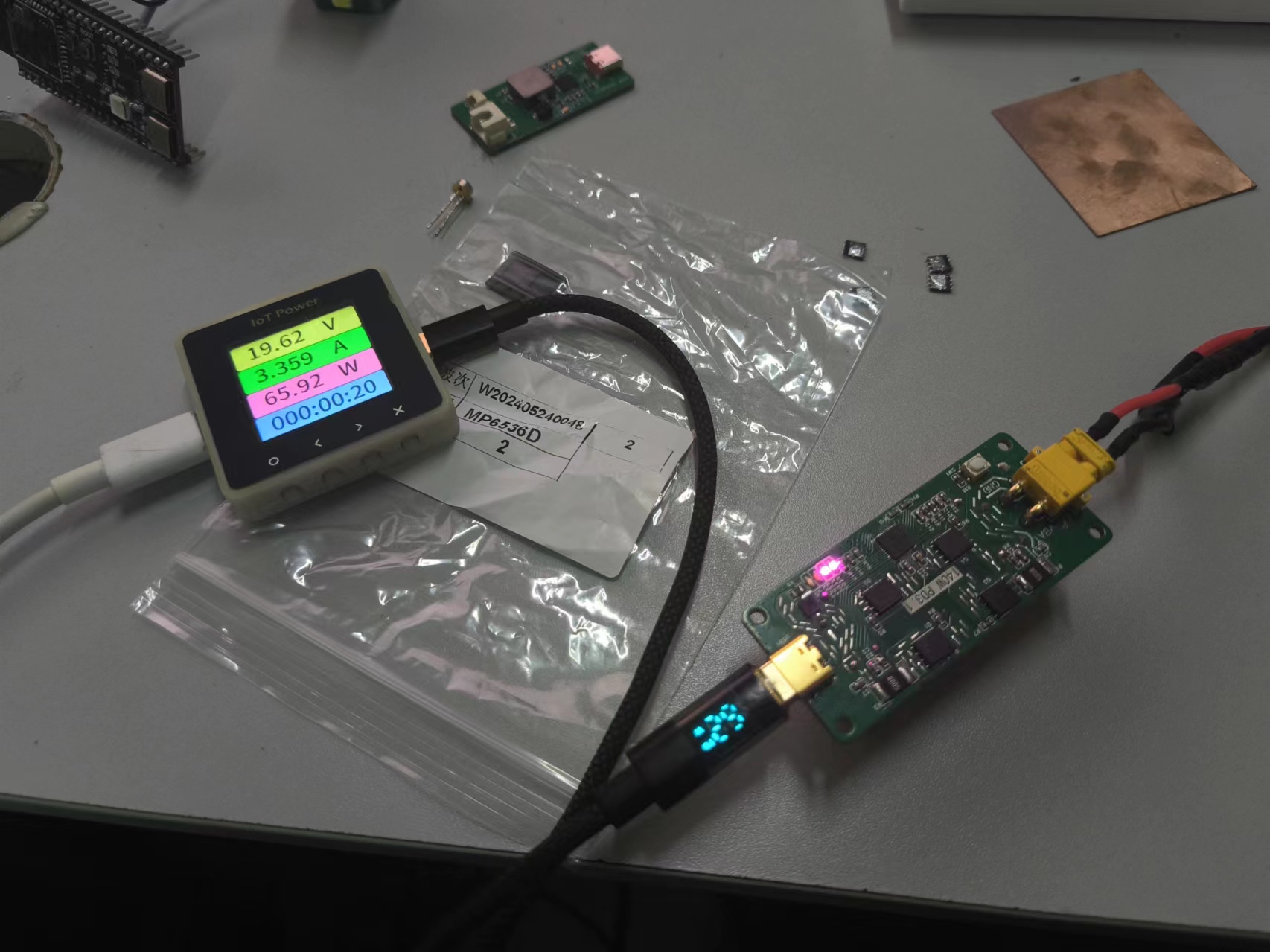

65W charging

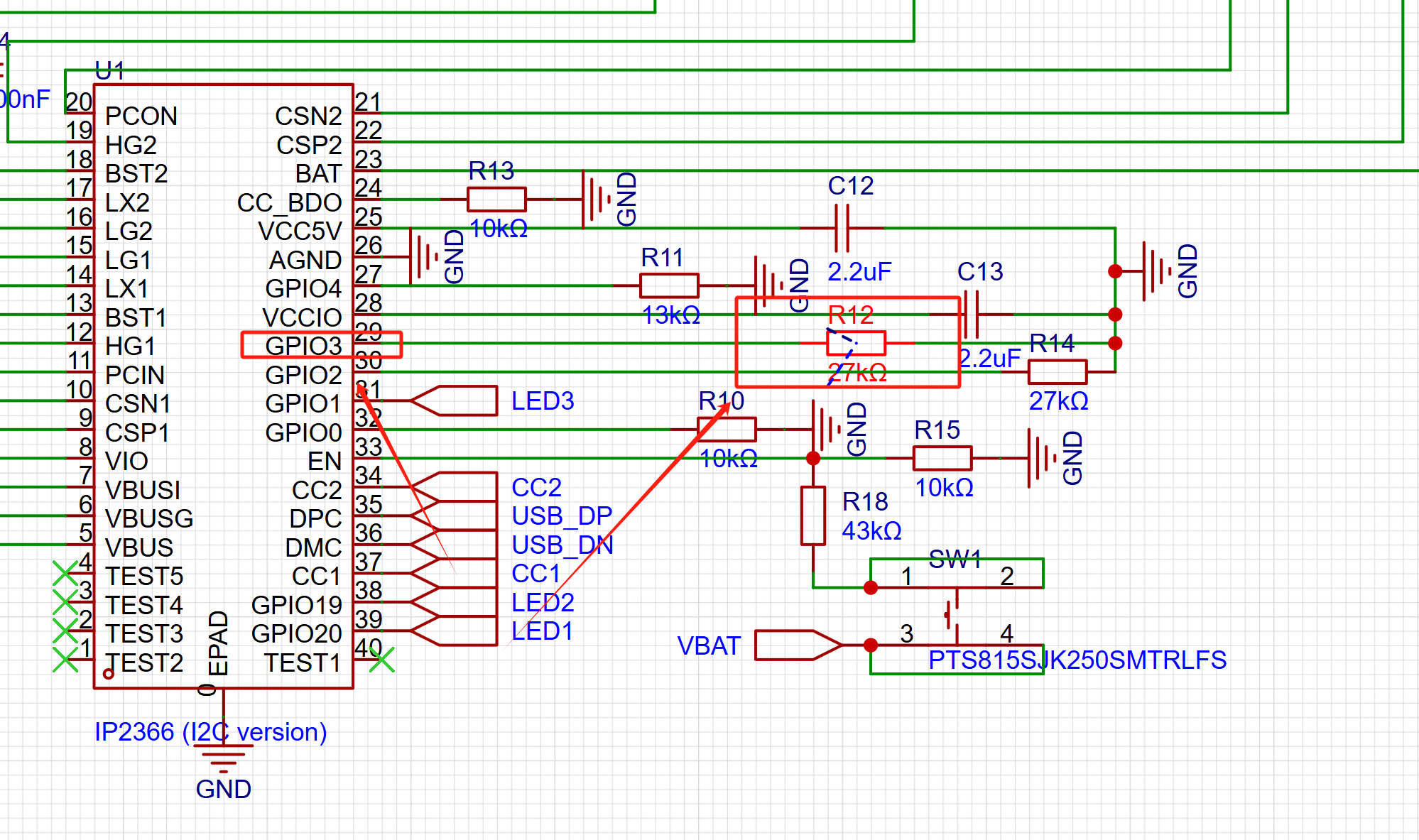

, it is recommended to reduce the power and modify the GPIO3 resistor.

PDF_140W Single USB-C Port Bidirectional Fast Charging_ip2366.zip

Altium_140W Single USB-C Port Bidirectional Fast Charging_ip2366.zip

PADS_140W Single USB-C Port Bidirectional Fast Charging_ip2366.zip

BOM_140W Single USB-C Port Bidirectional Fast Charging_ip2366.xlsx

92236

T12_JBC210_JBC245 Universal Soldering Station

JBC210 (supports 24V) JBC245 T12 universal

Disclaimer: Please adhere to the open-source license. Commercial use is prohibited. Please cite the source when forwarding.
Warning: handskit flagship store. Unauthorized commercial use will result in this soldering station being removed from Taobao.

(Code: JBD

soldering station features:

            supports JBC245, JBC210, T12
            ; theoretically supports 2.0, 2.4, 2.8, 3.2 IPS, ST7789V2 SPI interface screen; 2.0 screen connection;
            JBC210 supports 24V power supply
            ; real-time temperature and power curve display;
            full PID temperature control; supports custom parameters
            ; rapid temperature recovery
            ; current detection; overcurrent protection;
            visual calibration;

wiring diagram;
