MAXREFDES165# Quad Channel IO-Link Master

MAXREFDES165# Four-Channel IO-Link Master

Overview

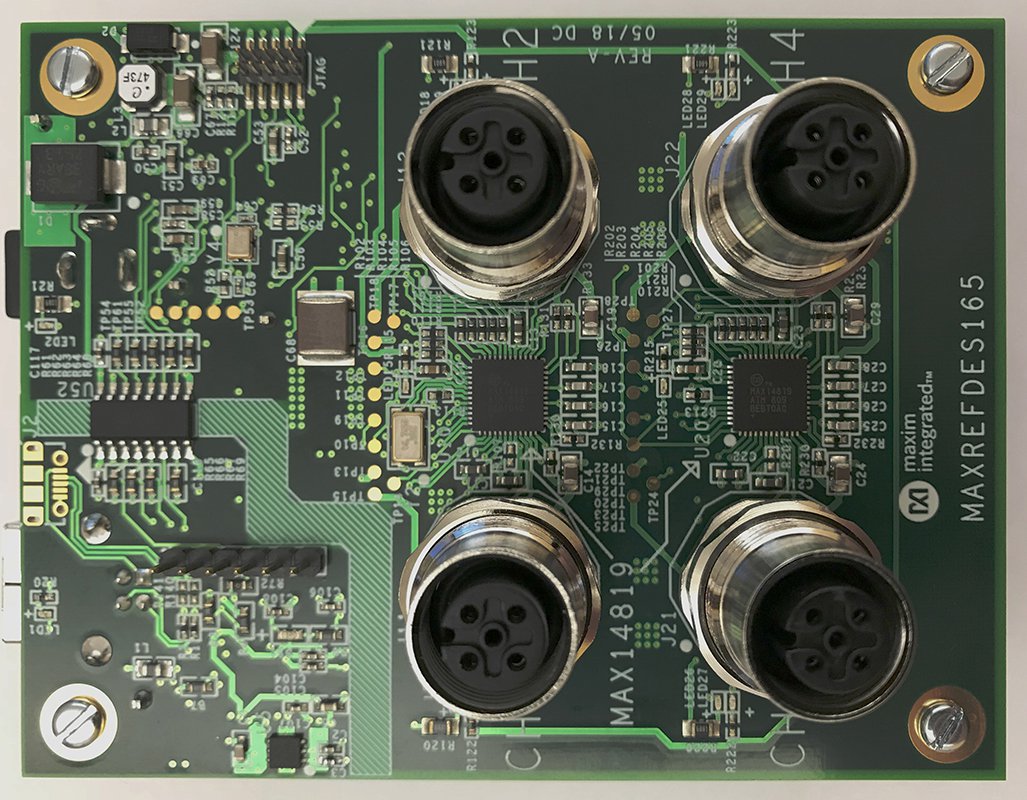

The MAXREFDES165# is a fully IO-Link^®-compliant, 4-port IO-Link master reference design. This design uses the TMG TE IO-Link master stack and is both an IO-Link master reference design and a development and test system for IO-Link sensors/actuators. Four IO-Link ports allow for simultaneous testing of up to four different sensors (or actuators). The reference design has four robust female M12 connectors--the most common connector used for IO-Link--and ships with an IO-Link cable for connecting quickly to IO-Link compatible sensors and actuators. An AC-to-DC (24VDC/1A) power supply is capable of providing at least 250mA to each port simultaneously, and more when fewer ports are used. A USB 2.0 Type B connector allows for quick connectivity to a Windows^® PC.

Features

Fully IO-Link Version 1.1 compliant
TMG TE IO-Link master stack
Easy-to-Use IO-Link Device Tool V5 from TMG
4 IO-Link master ports
Ships with all required cables
Field-update programmable

Competitive Advantages

Simultaneous four-port operation
Easy-to-use GUI
IODD import

Applications

Control and automation
IO-Link sensors
IO-Link actuators
