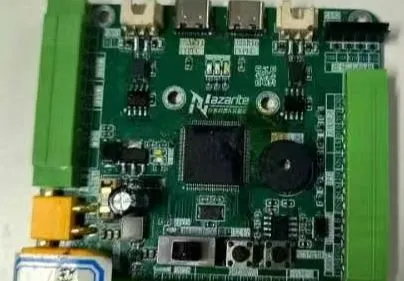

RC Walker Robotics Lab - STM32F407ZGT6 Main Control Board

Overview

This product is a control board based on the STM32F407ZGT6 as the main control chip. It contains a DC-DC module and an LDO module, supports CAN communication and 485 communication, integrates a serial-to-TTL converter, can be directly connected to a TYPE-C for debugging, and also has multiple general-purpose serial ports available for use, which can meet the needs of daily competitions.
