STM32F407ZGT6 core board

Overview

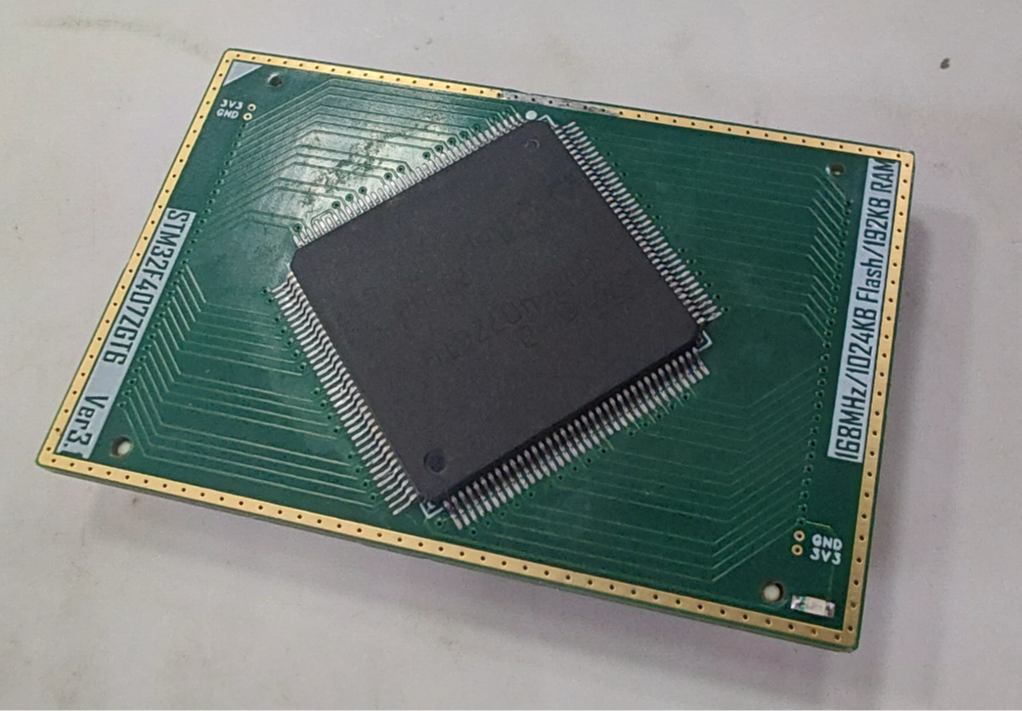

This is an STM32F407ZGT6 core board produced by the Applied Electronics Technology Association. It includes
the necessary driver circuitry for the onboard chips and an indicator light.

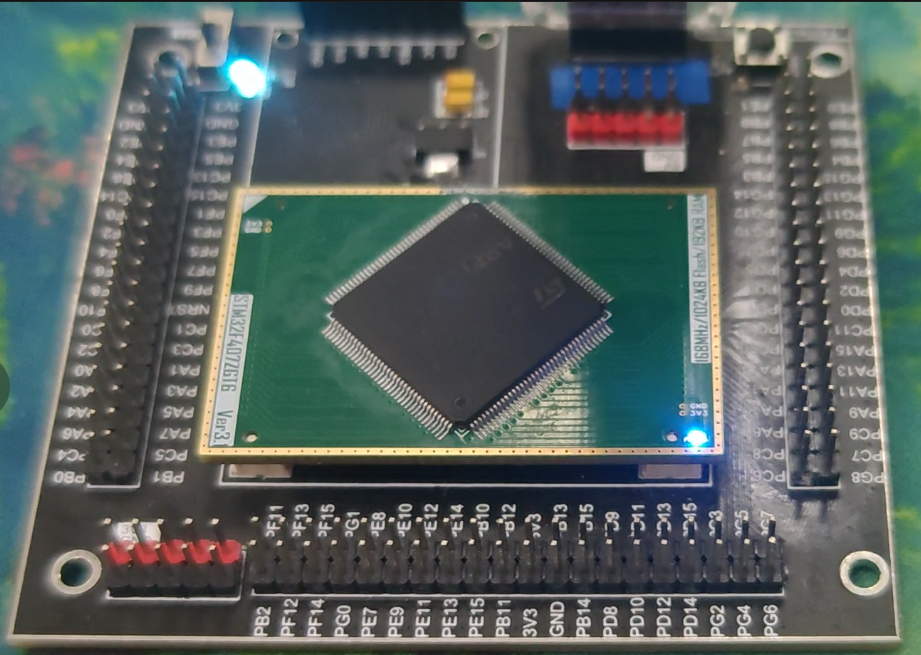

It can be directly used via a BTB connector. Quick plug-and-play replacement saves time and money.
PA11 and PA12 are for CAN1_RX and CAN1_TX, respectively, and feature differential routing. When routing on the expansion board, they should be kept as close as possible and configured as differential pairs.

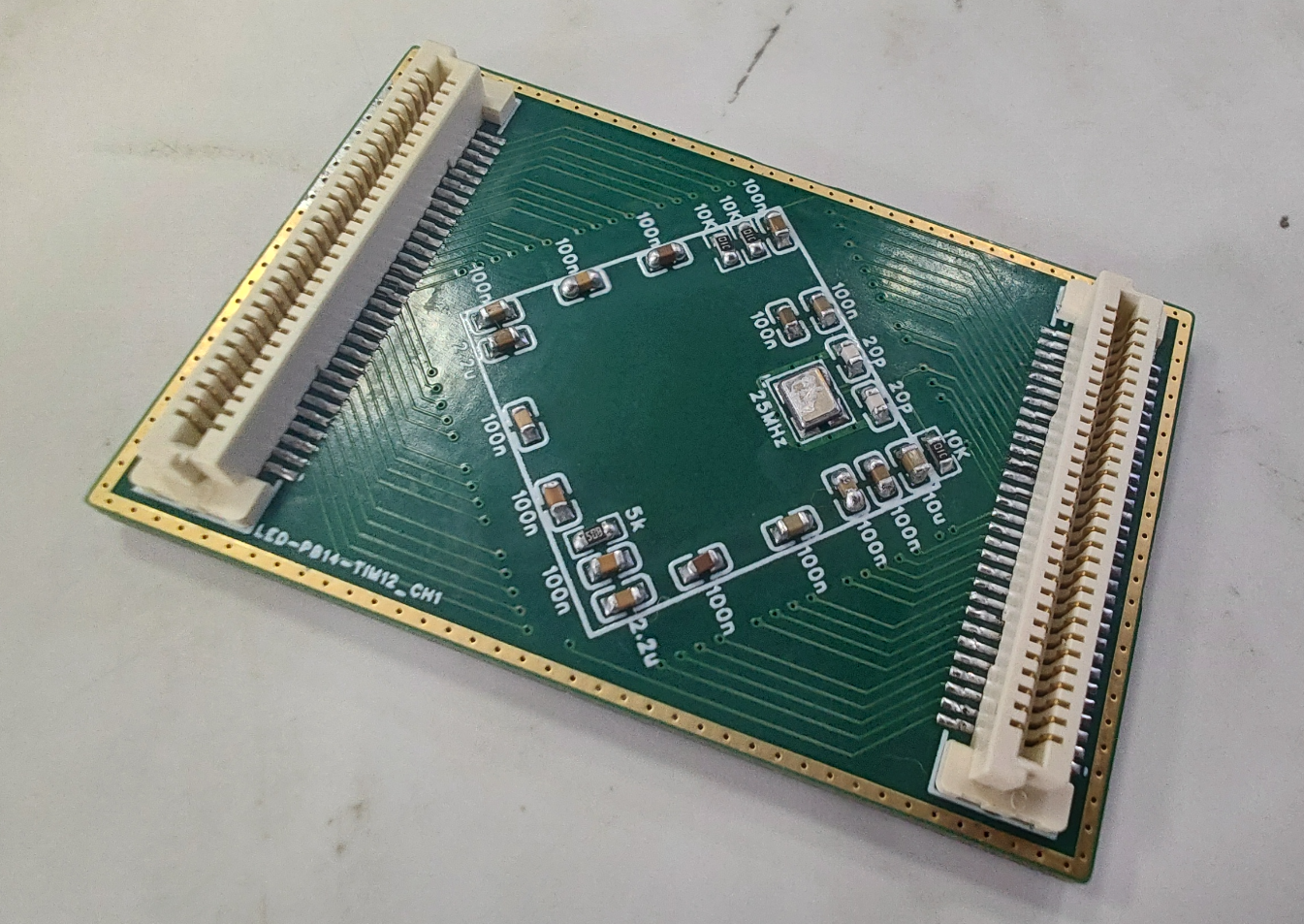

The LED is connected to PB14, corresponding to TIM12_CH1, and can function as a breathing light.
BOOT0 is grounded via a pull-down resistor and can be automatically pulled high; BOOT1 (PB2) is left floating and requires manual adjustment.
