#Bootcamp# Simple Oscilloscope Project Based on GD32 4390117A

Overview

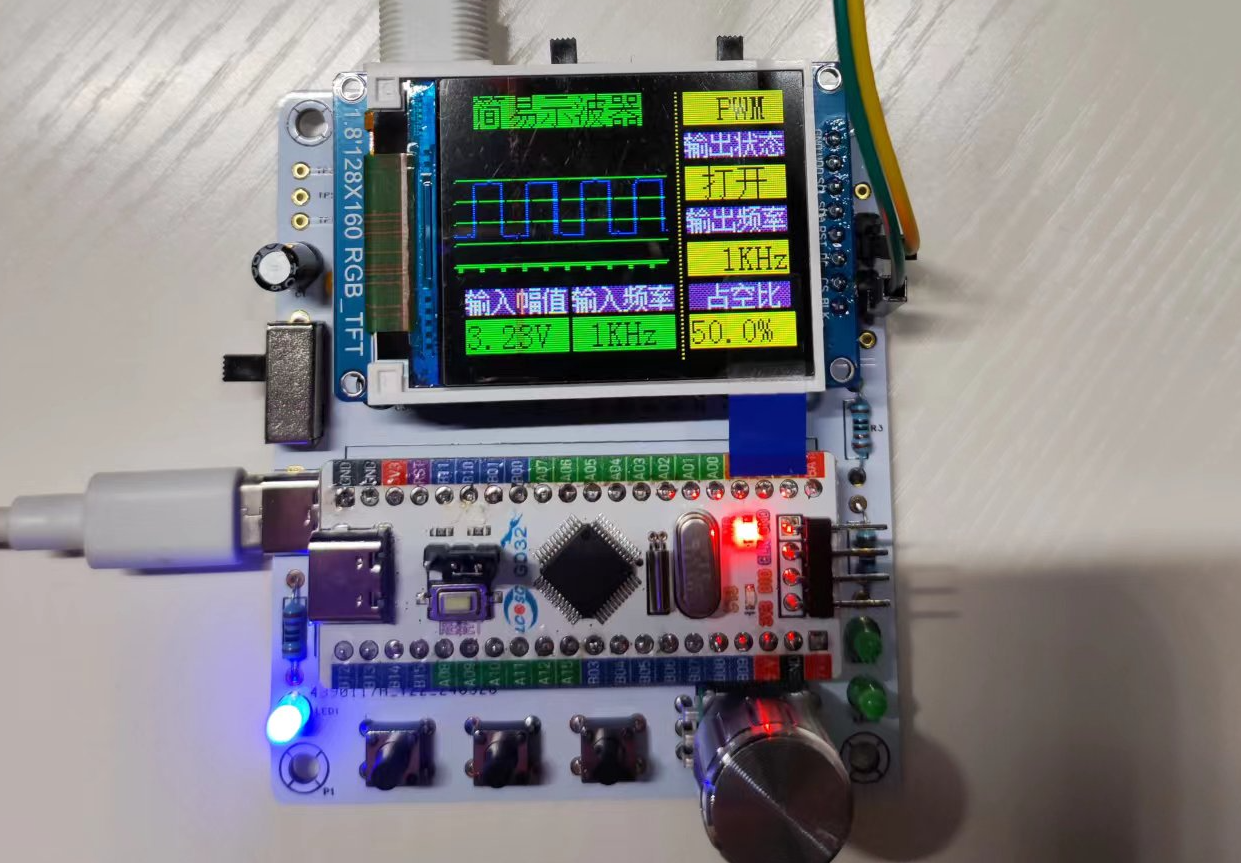

As a complete beginner to a simple digital oscilloscope based on the GD32,
I participated in the LCSC training camp for the first time. Following the tutorials step-by-step, I learned the principles and successfully replicated the oscilloscope. Near the end of the camp, I finally succeeded. Along the way, I encountered many problems and difficulties, which I gradually improved upon based on the tutorial documents and guidance from experienced users. I am very grateful to the teachers at LCSC EDA and the experts in the group for their guidance; it was quite an accomplishment.
