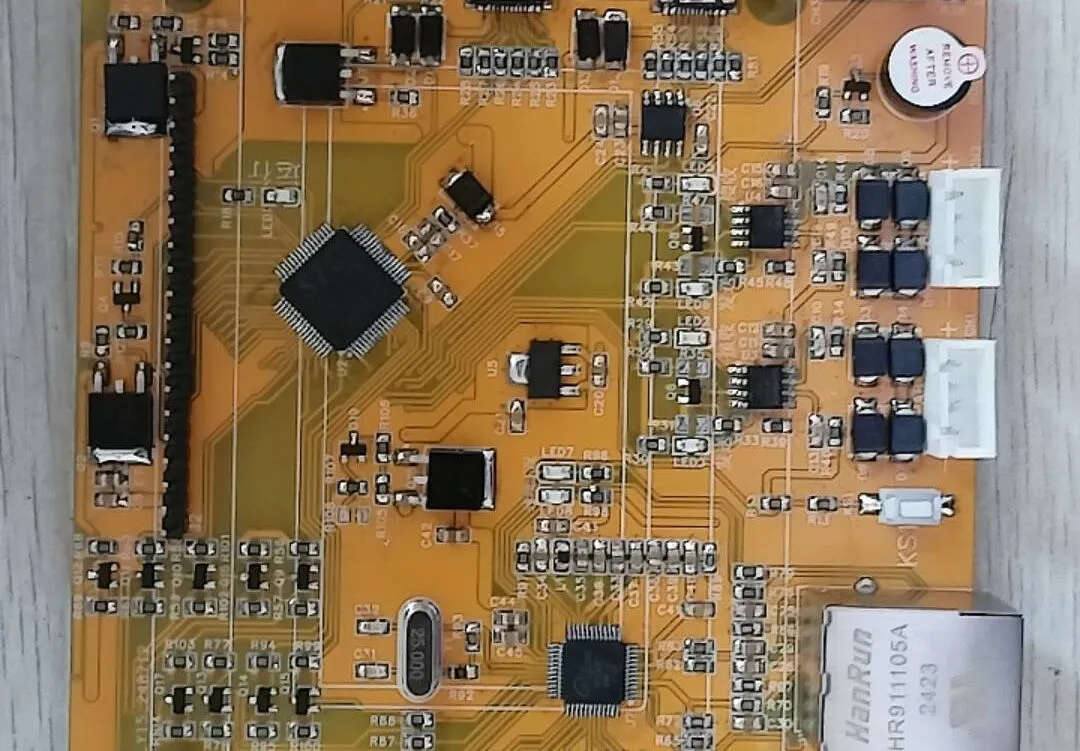

STC32_KS0108

Overview

The LCD controller is of the KS0108 type. The STC website has a bare-metal UGFX module. The website address is: [New Reminder] [uGFX/GUI + uC/OS-II] @STC32G; uGFX/GUI@STC32G bare-metal - uCOS/FreeRTOS, GUI-uGFX/U8g2, file system, domestic RTOS, real-time operating system. This is a global 32-bit 8051 enthusiast mutual aid and exchange community: https://www.stcaimcu.com/forum.php?mod=viewthread&tid=7130&extra=&page=1.
The network controller is W5500, with automatic RS-485 transmission and reception, TTL to USB conversion, and uses serial port 2.
Everyone can learn from it.
