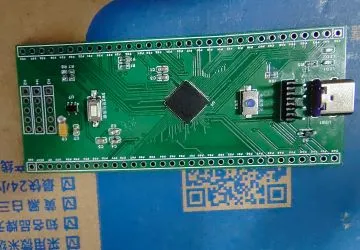

STC32G12K128-LQFP64 Minimum System Board

Overview

The main controller uses two chip packages: STC32G12K128-QFN64 and LQFP. The appropriate chip can be selected for PCB fabrication and soldering.

It has 64 I/O ports.
An onboard 5V to 3.3V converter provides 5V, GND, and 3.3V outputs for easy power supply to external modules.
The board includes one power LED, one user LED
, two user buttons, one normally closed power switch, and one normally open download/reset button.
A serial port interface is provided.
A Schottky diode is added to the 5V input of the Type-C interface to prevent current reversal.
Hardware USB download is used. Pressing the reset button and then powering on via USB...
