"Foolproof" 100Mbps five-port switch

Overview

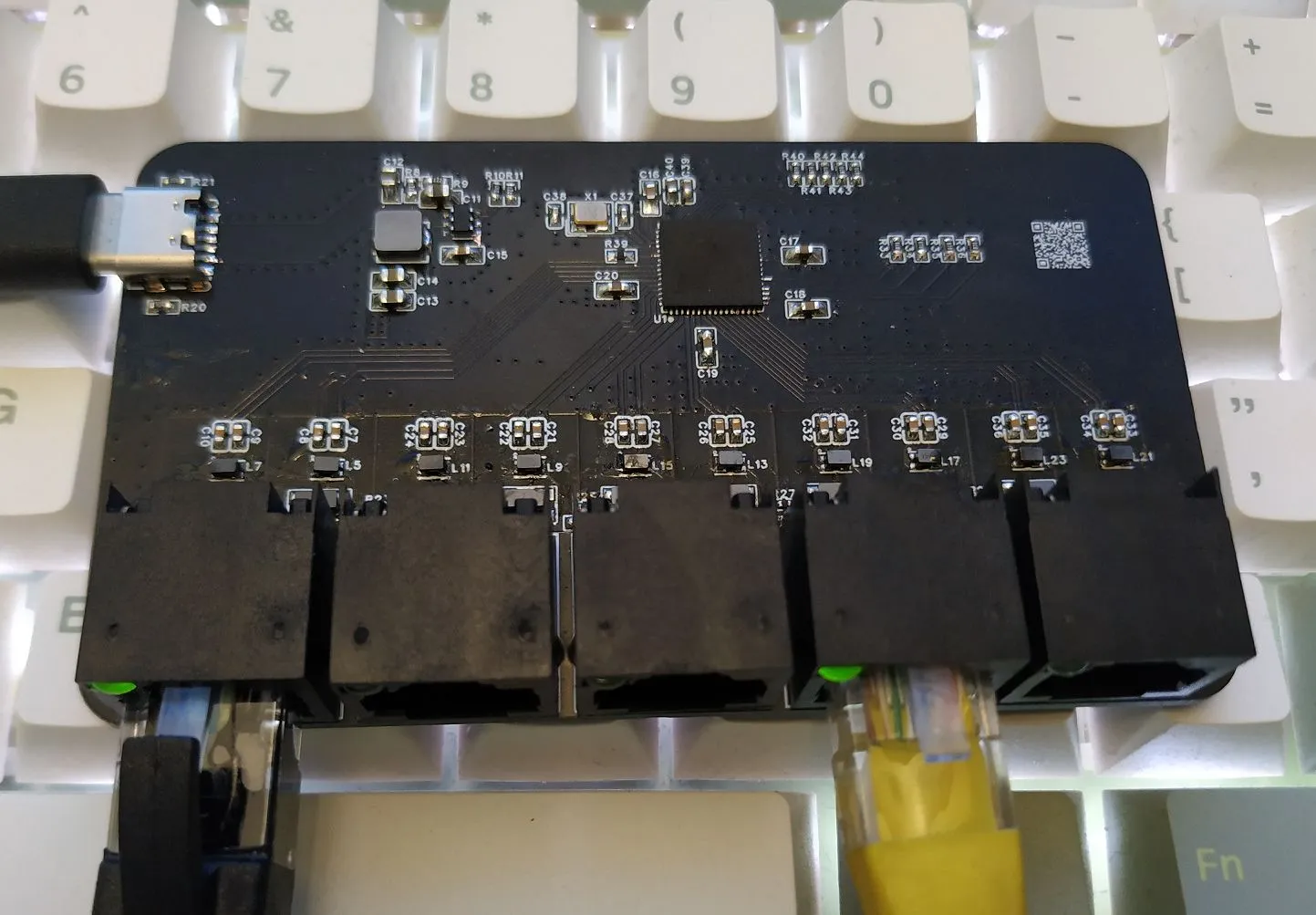

A user-friendly 100Mbps five-port switch based on the RTL8306
, featuring data indicator lights, DC-DC step-down
input (DC5V-1A)
, Type-C power interface,
and RJ45 data port.
