#Training Camp#Oscilloscope 1

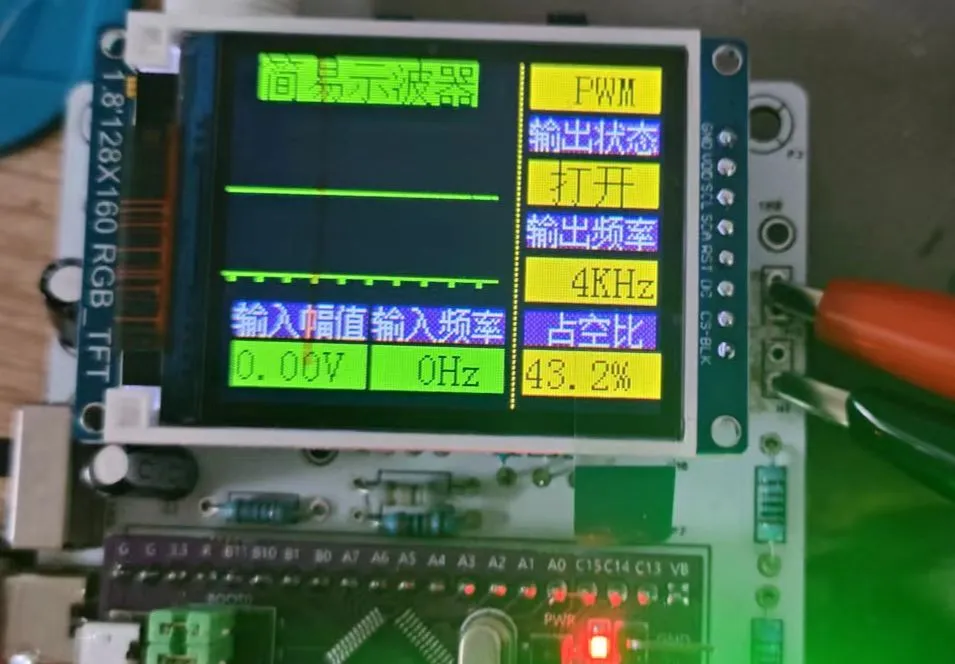

1. Overview: This project aims to design and build a simple oscilloscope for displaying the waveform of input signals. The oscilloscope will acquire analog signals through a microcontroller and present the waveform graphics to the user in real time via an LCD screen. 2. Hardware Design:
1. Microcontroller: Uses an STM32 minimum system board with sufficient processing power and rich library function support. 2. Analog Input: Receives external signals using analog input pins and converts analog signals to digital signals via an ADC (Analog-to-Digital Converter). 3. LCD Screen: Uses a 128x64 pixel LCD screen for real-time display of waveform images. 4. Power Supply: TYPE-C 5V power supply.
3. Software Design:
Uses open-source ported source code for burning.
