4-channel brushless motor control board

Overview

I. Project Introduction
1. Overview:

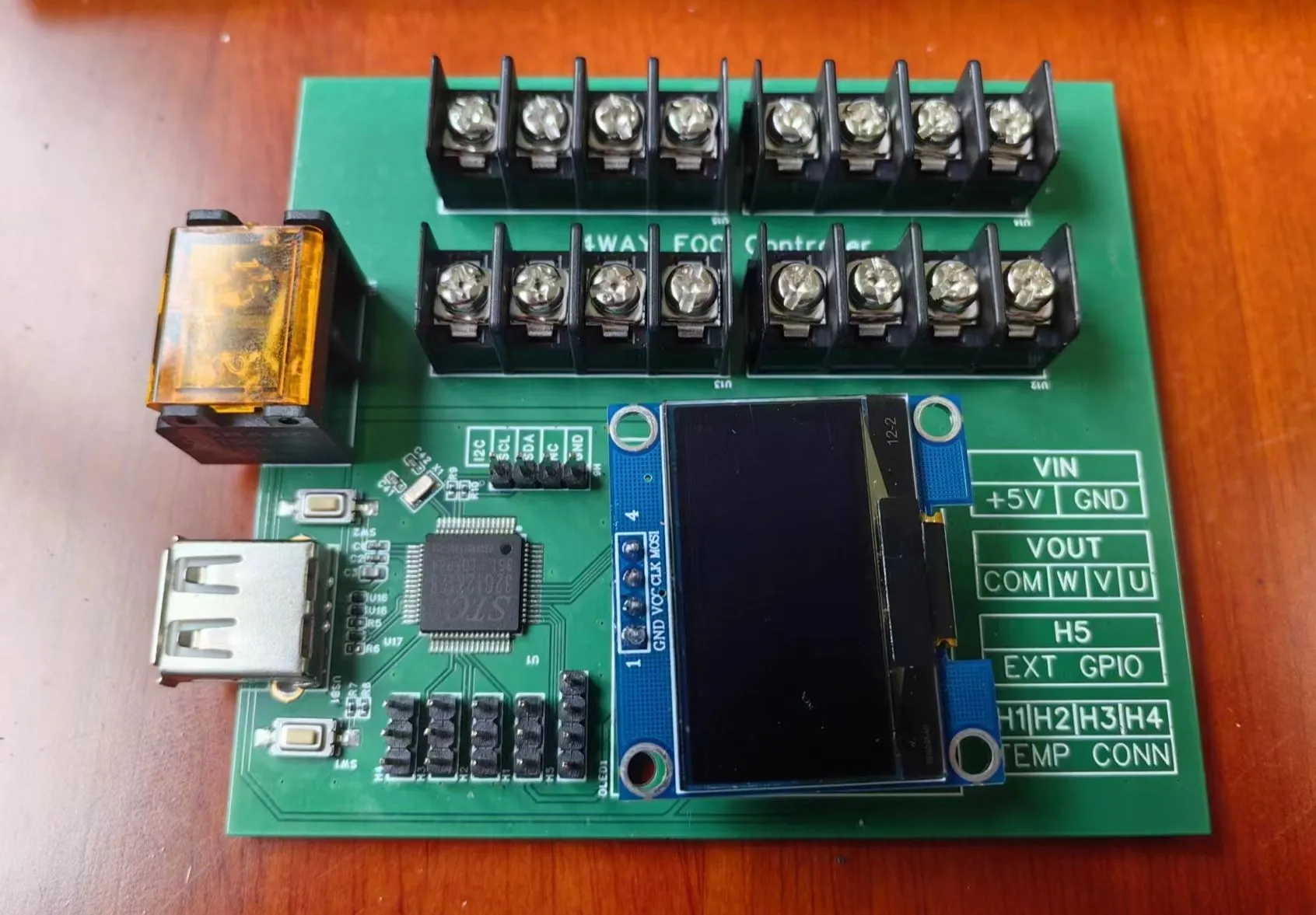

A 4-channel brushless motor control board, using an STC32G12K128 main control chip and a DRV10866DSCR motor control chip, suitable for low-current brushless motor control.
2. Project Status
: Under verification.
3. Precautions:

Input voltage is 5V; recommended current is not less than 5A;
maximum single-channel output current is 680mA.

II. Related Documents:
DRV10866 5V, Three-phase Sensorless, Brushless DC (BLDC) Motor Driver
